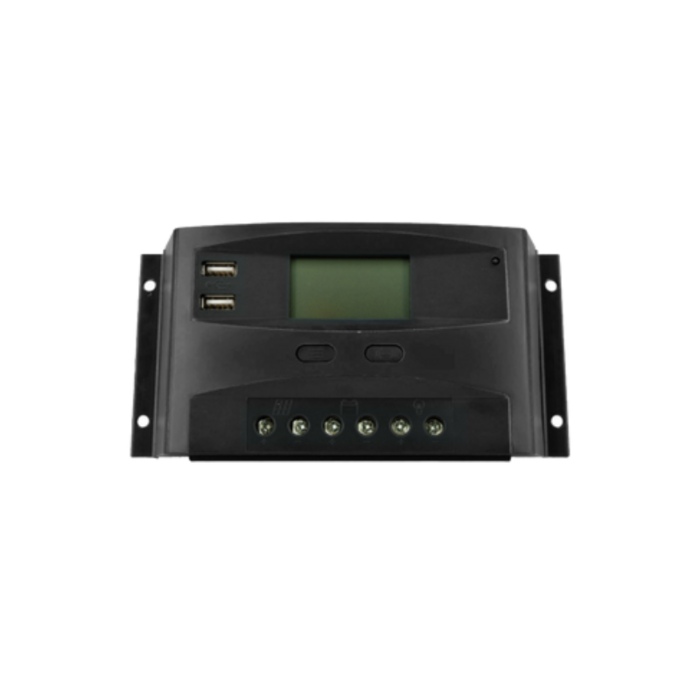

30 AMP CHARGE CONTROLLER W/DISPLAY - 12/24V SELECTABLE

Electrical Characteristics

• Module Type: SLC-GP2430C
• Rated Current: 30A
• System Voltage: 12V/24V (Auto)
• HVD: 16.00V×1/×2/×4
• Equalization voltage: 14.6V(13V~15.5V) ×1/ ×2/ ×4
• Float Charging Voltage: 13.8V(13V~15V) ×1/ ×2/ ×4

Rating Characteristics

• Operating temperature: -20°C~+50°C
• Battery type: GEL, SLD, FLD and USr (default)
• Temperature compensation: -4.17mV/K per cell (Boost, Equalization), -3.33mV/K per cell (Float)
• Max volt on PV terminal: 55V

Specifications

• USB interface: 5V 1A
• Module dimension: 188×95×46.5mm
• Weight: 360g
