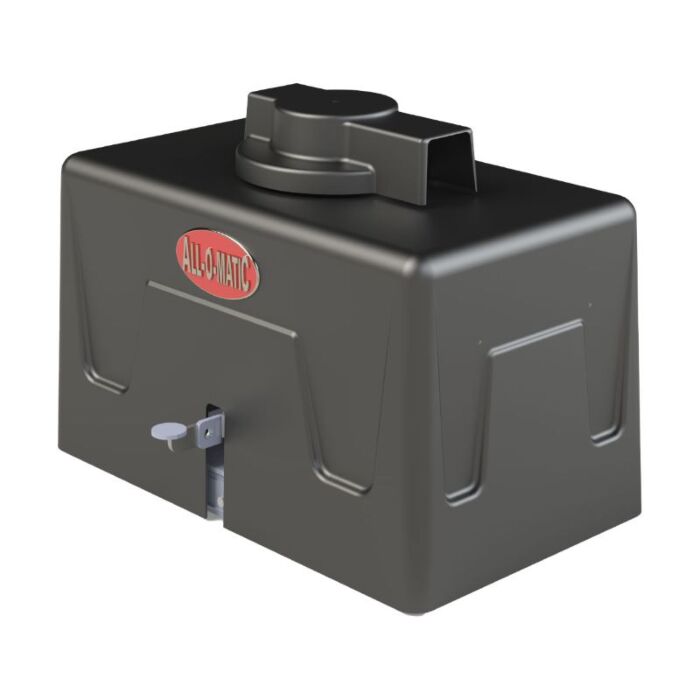

ALL-O-MATIC SW350DC 1 HP SWING GATE OPERATOR (22 W/2500 LBS) (INCLUDES PHOTOEYE)
ALL-O-MATIC SW350DC 1 HP SWING GATE OPERATOR (22 W/2500 LBS) (INCLUDES PHOTOEYE)
Product Description
More Information
- Max Gate Weight- 1HP: 2,500 lbs
- Max Gate Length- 22 ft
- Warranty- 7 year residential, 5 year commercial
- Motor- 24 VDC brushless- 1 HP motor
- Gate Speed- Adjustable 17-25 seconds per 90° opening
- Duty Cycle- Continuous
- Battery Back Up- Integrated, with (2) 7Ah 12VDC batteries
- Battery Back Up Capacity- Up to 250 cycles
- Temperature Range- -40° to 160°
- Gearbox Ratio- 60:1 with internal clutch
- Width x Length x Height- 14" x 24" x 18"
- UL 325 2018 Compliant
|
Specifications
Specifications | Can ship via UPS | Yes |
|---|
| Gate Operators | Swinging |
|---|
| Manufacturer | All-O-Matic |
|---|
| Package/Shipping Weight | 50 |
|---|
