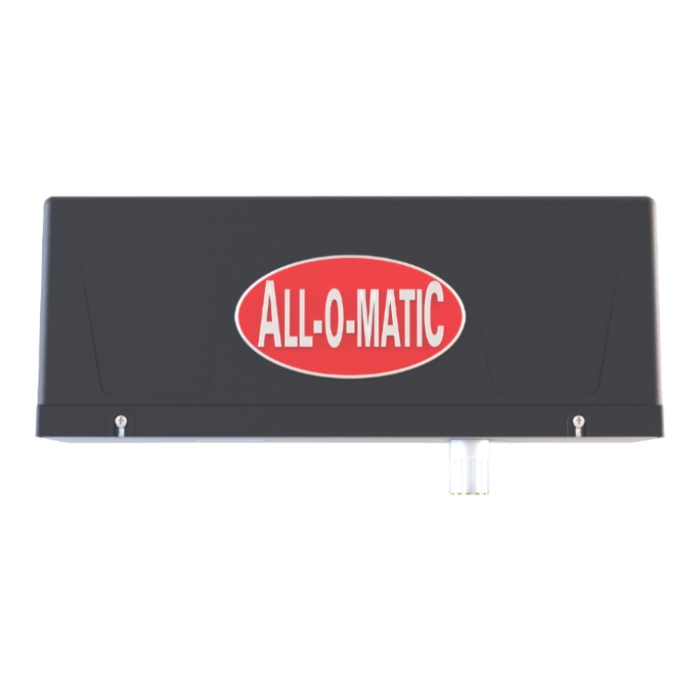

Introducing All-O-Matic’s new Mach-Prime automatic column mount swing gate operator. A solution designed to provide simplicity, versatility, and convenience for gates up to 8 feet wide and weighing up to 500 lbs. It delivers a smooth and virtually silent gate movement so that you may enjoy the convenience of an automated gate without any disruptive noise. The Control board boasts programmable logic and an advanced charge controller optimized for solar applications. It supports 12/24V solar panels up to 80 watts, making it suitable for most residential applications.
UL 325 2018 Compliant
Max Gate Weight: 500 lbs.
Max Gate Length: 8 feet
Motor: 24 VDC gearhead motor
Gate Speed: Adjustable 14-25 seconds per 90° opening
Power Options: 115/230 VAC single phase and 24 VDC solar panel
Duty Cycle: 30 minutes (Intermittent)
Battery Back Up: Integrated, with (2) 7Ah 12VDC batteries
Battery Back Up Capacity: Up to 250 cycles
Temperature Range: -20 to 160°
Operator Dimensions: D 5" X L 15" X H 5.75"
Control Box Dimensions: H 16.750" X L 19.6875" X D 7.875"
