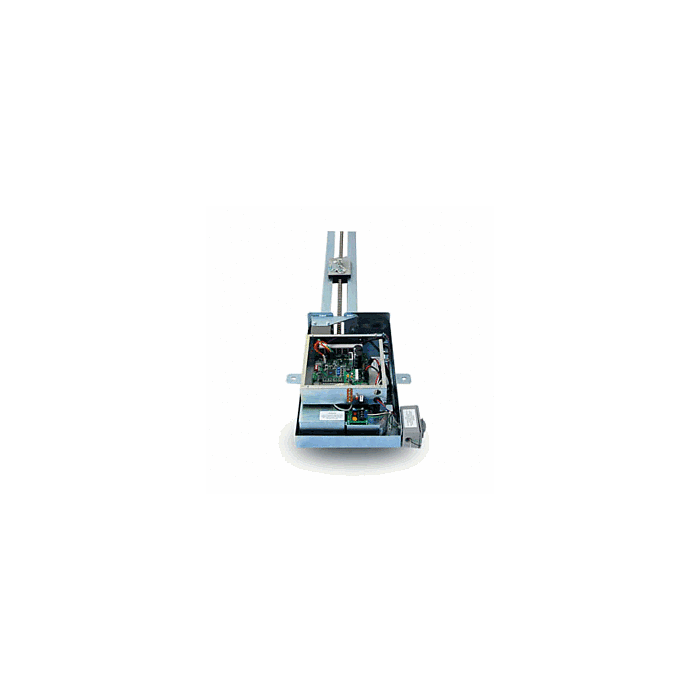

ALL-O-MATIC OH200 1/2 HP DC OVERHEAD GATE OPERATOR (10 H X 22 W/1000 LBS)
Product Description
More Information
*** INCLUDES ONE PHOTOEYE ***
All-O-Matics OH-200 DC overhead gate operator is the first and only commercial overhead gate operator available with a true integrated long term battery backup. The OH-200 DC overhead gate operator comes equipped with an industry first Brushless DC motor, built in loop rack, slow start/stops algorithm, heavy duty frame and parts that last a life time. The OH-200 DC offers days of uninterrupted operation in the event of a power failure. Unlike other currently available open and die single cycle battery backups, in the event of a power failure the OH-200 DC seamlessly switches from AC power to backup mode and runs off of its included (2 8Ah) batteries. DC operators are equipped with a control board that offers an array of features that include a programmable relay and leaf delay, slow start/stop algorithm, and solar power capability. The integrated battery backup offers up to two weeks of uninterrupted operation in the event of a power outage. The brushless DC motors are smooth and quiet but are powerful and durable and require zero maintenance.
UL 325 2018 Compliant
Max Gate Weight: 800 lbs.
Max Gate Length: 22 feet
Motor: 24 VDC brushless – ½ HP motor
Gate Speed: 20 seconds for full open (6.5’ to 8’ gate)
Power Options: 115/230 VAC single phase and 24 VDC solar panel
Duty Cycle: Continuous
Battery Back Up: Integrated, with (2) 7Ah 12VDC batteries
Battery Back Up Capacity: 100 cycles on a 800 lb. gate
Temperature Range: -40 to 160°
Gearbox Ratio: 30:1

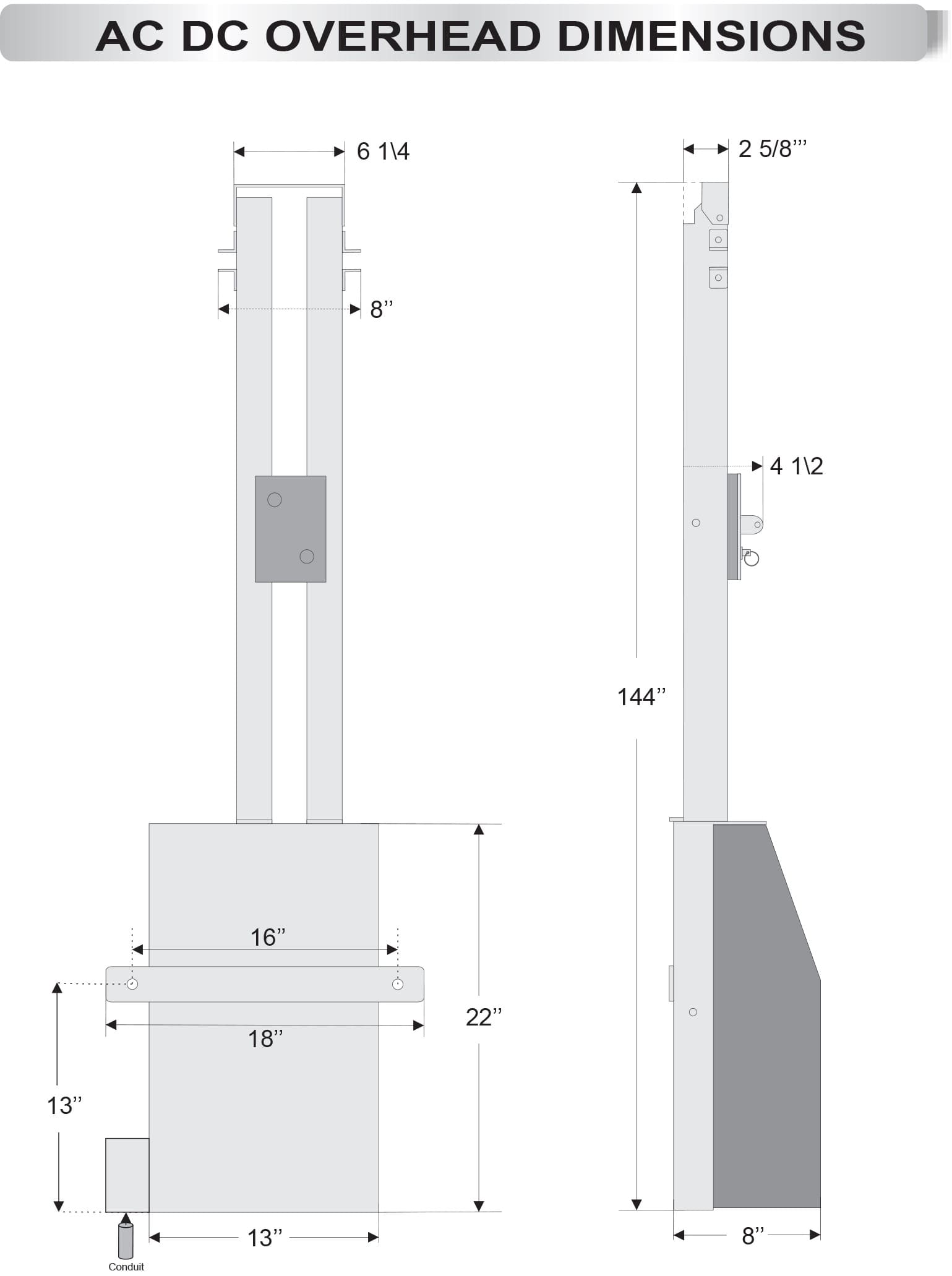

Width X Length X Height: 13” X 144” X 8”
Shipping Weight: 110 lbs.
Emergency Release: Lockable quick release drive arm and carriage
