ALL-O-MATIC OH200 1/2 HP OVERHEAD GATE OPERATOR (10 H X 16 W/800 LBS)
Product Description
More Information
*** INCLUDES ONE PHOTOEYE ***

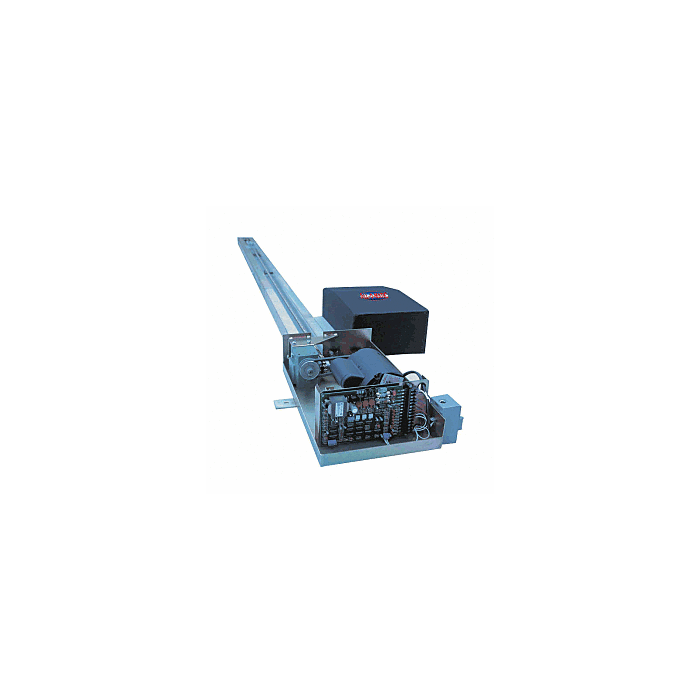

This is a commercial gate operator for overhead tilt up gates. You will see this operator quietly operating gates for underground parking facilities and apartment/condo buildings. AC operators come with the simplest and most dependable control board in the industry that’s backwards compatible. A powerful and durable motor that has been field tested for over 20 years.
UL 325 2018 Compliant
Max Gate Weight: 800 lbs.
Max Gate Length: 20 feet
Motor: ½ HP motor
Gate Speed: 20 seconds for full open (6.5’ to 8’ gate)
Power Options: 120 VAC
Duty Cycle: Continuous
Temperature Range: -40 to 160°
Gearbox Ratio: 30:1
Width X Length X Height: 13” X 144” X 8”
Shipping Weight: 100 lbs.
Emergency Release: Lockable quick release drive arm and carriage
