ALL-O-MATIC SL100 1/2 HP DC SLIDING GATE OPERATOR W/FOOT PEDAL EMERGENCY RELEASE (45'/2000 LBS)
Product Description
More Information
*** INCLUDES TWO PHOTOEYES ***

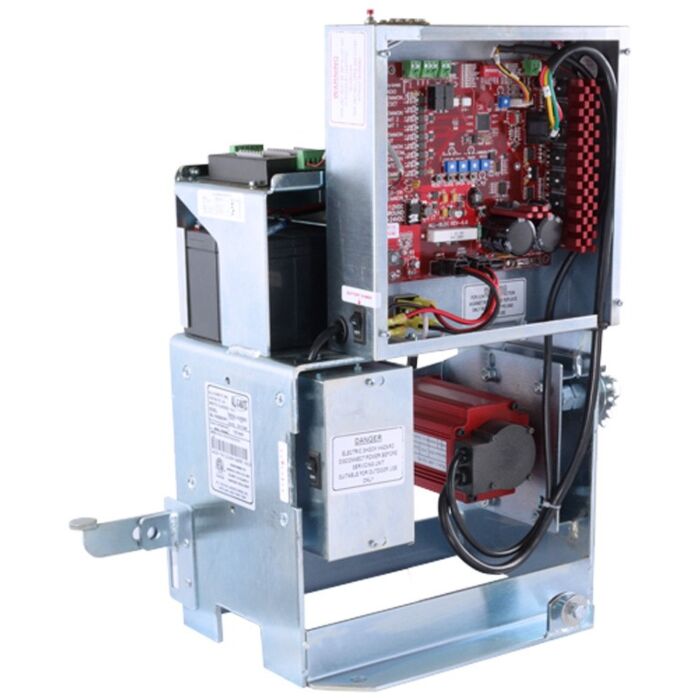

Designed to be the strongest, most durable DC gate Operator in its class. The SL-100FP DC gate operator utilizes an industry first brushless motor technology (no maintenance, high torque, and smooth quiet operation), total in house design, programming and construction. Equipped with a built in loop detector rack and enough power to operate all accessories on battery power. Manufactured with a heavy duty frame and parts that are made to last a life time.
DC operators are equipped with a control board that offers an array of features that include a programmable relay and leaf delay, slow start/stop algorithm, and solar power capability. The integrated battery backup offers up to two weeks of uninterrupted operation in the event of a power outage. The brushless DC motors are smooth and quiet but are powerful and durable and require zero maintenance. As with most of our AC operators, our DC operators now include an emergency foot pedal release and a built in loop rack.
UL 325 2018 CompliantMax
Gate Weight: 2,000 lbs.
Max Gate Length: 50 feet
Motor: 24 VDC brushless – ½ HP motor
Gate Speed: 12” per second
Power Options: 115/230 VAC single phase and 24 VDC solar panel
Duty Cycle: Continuous
Battery Back Up: Integrated, with (2) 7Ah 12VDC batteries
Battery Back Up Capacity: 80 cycles on a 1,000 lb. gate
