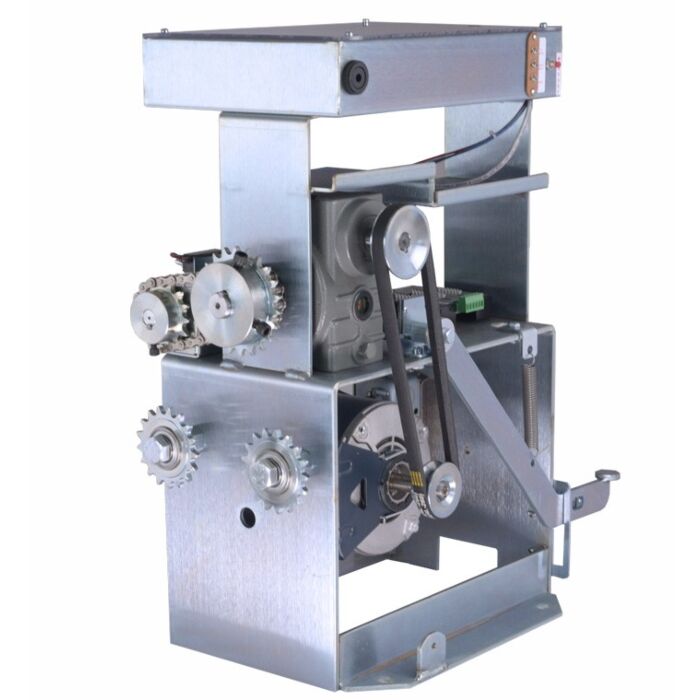

ALL-O-MATIC SL100 1/2 HP AC SLIDING GATE OPERATOR W/FOOT PEDAL EMERGENCY RELEASE (37'/1000 LBS)

*** INCLUDES TWO PHOTOEYES ***

The SL-100FP AC is affordable, slim and rated for continuous duty on gates up to 1000lbs. This is a 110 Volt AC device capable of years and years of reliable service.

Features

• UL 325 2018 Compliant
• Max Gate Weight: 1,000 lbs.
• Max Gate Length: 37 feet
• Motor: ½ HP motor
• Gate Speed:12” per second
• Power Options:120 VAC
• Duty Cycle: Continuous
• Temperature Range: -40 to 160°
• Gearbox Ratio: Regular – 10:1, FP – 20:1 with internal disconnect

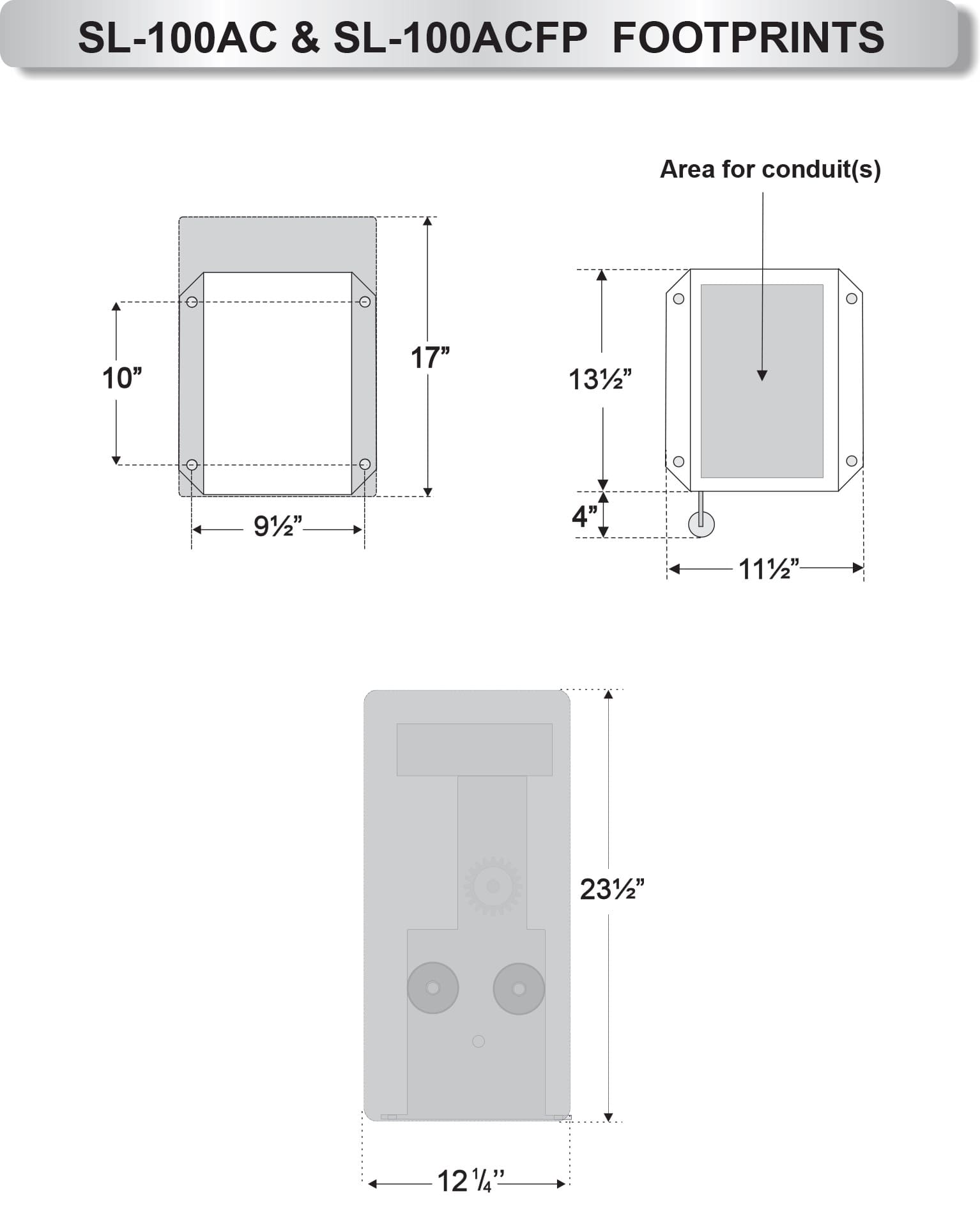

• Width X Length X Height: 12” X 17.5” X 23.5”
• Shipping Weight: 100 lbs.
• Emergency Release: Regular: Push open in event of a power failure, FP: Mechanical foot pedal release
• Belt Size: Regular: 4L-300 (AX28), FP: 4L-260 (AX24)
• Main Sprocket Size: 41B22X7/8
• Chain Size: 41NP (20’ included)
• Limit Shaft Sprocket: Regular: N/A, FP: 41B15X5/8
• Breaker Requirement: 20 amp dedicated
• Gearbox Pulley: Regular: 5” with 5/8” bore, FP: 2 ½” with 5/8” bore
• Motor Pulley: 2” with 5/8” bore
