*** INCLUDES TWO PHOTOEYES ***

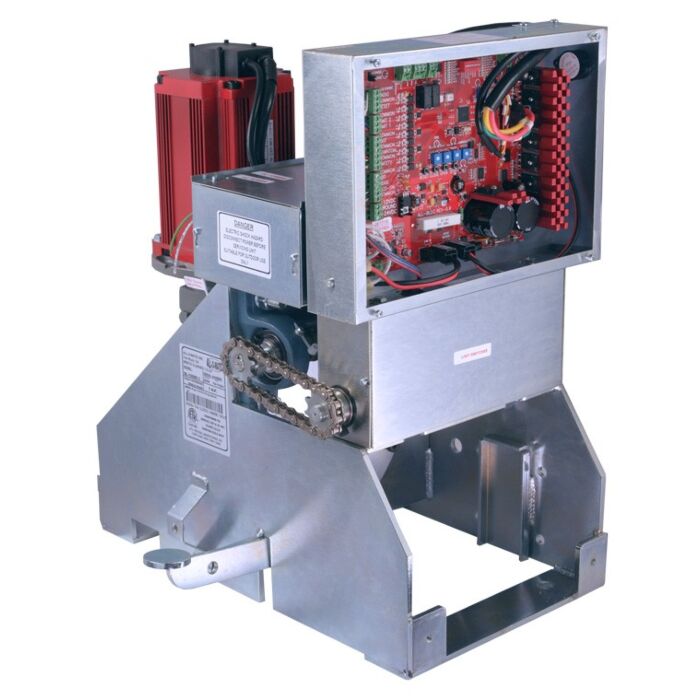

The SL-150DC was designed to meet the demands of gate installers who want a gate operator that can handle heavy traffic, commercial/industrial heavy gates and/or extreme weather conditions. The combination of its heavy duty frame, reliable gearbox and powerful brushless DC motor make even the most challenging installations simple and easy.
DC operators are equipped with a control board that offers an array of features that include a programmable relay and leaf delay, slow start/stop algorithm, and solar power capability. The integrated battery backup offers up to two weeks of uninterrupted operation in the event of a power outage. The brushless DC motors are smooth and quiet but are powerful and durable and require zero maintenance. DC operators include an emergency foot pedal release and a built in loop rack.
Specifications:
UL 325 2018 Compliant
Max Gate Weight: 1/2 HP: 3,000 lbs
Max Gate Length: 60 feet
Motor: 24 VDC brushless – 1/2 HP motor
Gate Speed: 12” per second
Power Options: 115/230 VAC single phase and 24 VDC solar panel
Duty Cycle: Continuous
Battery Back Up: Integrated, with (2) 7Ah 12VDC batteries
Battery Back Up Capacity: 100 cycles on a 1,000 lb. gate
Temperature Range: -40 to 160°
Gearbox Ratio: 30:1 with internal clutch
Width X Length X Height: 15” X 19.5” X 25”
Shipping Weight: 150 lbs.
Emergency Release: Mechanical foot pedal release
Main Sprocket Size: 41B22X1
Chain Size: 40NP (20’ included)
Gearbox Sprocket: 40B22X1
Limit Shaft Sprocket: 41B10X5/8
Breaker Requirement: 20 amp dedicated |
