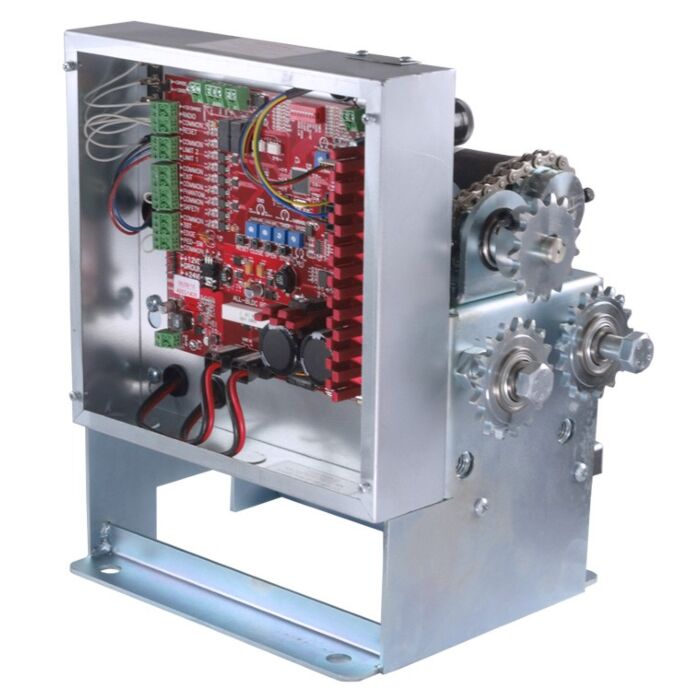

The SL-45DC is the smallest most efficient and reliable residential DC gate operator in the industry. The SL-45 DC is small in size but enormous in performance. Its top of the line Planetary gearbox and Brushless DC Motor carries a tremendous advantage over the conventional gearboxes and brushed DC motor commonly used in the industry due to its compact size and its outstanding power transmission efficiency. DC operators are equipped with a control board that offers an array of features that include a programmable relay and leaf delay, slow start/stop algorithm, and solar power capability. The integrated battery backup offers up to two weeks of uninterrupted operation in the event of a power outage. The brushless DC motors are smooth and quiet but are powerful and durable and require zero maintenance.
Features:
UL 325 2018 Compliant
Max Gate Weight: 800 lbs.
Max Gate Length: 30 feet
Motor: 24 VDC brushless with planetary gearbox
Gate Speed: 12” per second
Power Options: 115/230 VAC single phase and 24 VDC solar panel
Duty Cycle: Continuous
Battery Back Up: Integrated, with (2) 7Ah 12VDC batteries
Battery Back Up Capacity: 250 cycles on a 600 lb. gate
Temperature Range: -40 to 160°
Gearbox Ratio: Approx. 29:1
Width X Length X Height: 11” X 14.5” X 15.5”
Shipping Weight: 60 lbs.
Emergency Release: Push open in the event of a power failure
