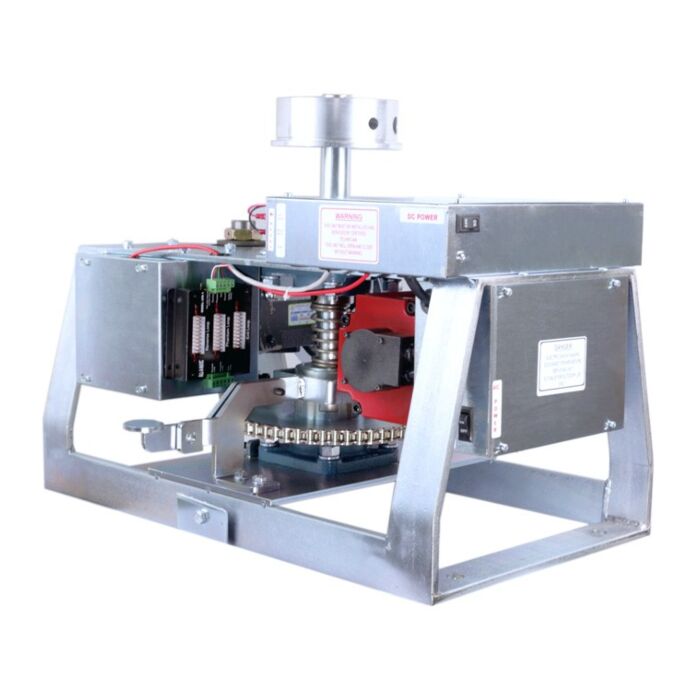

The SW-350 DC swing gate operator is the largest of Allomatics swing gate operators. This DC swing gate operator is capable of moving gates up to 2,000 Lbs or 22 feet in length. With all of the assets of the original 350 design and all of the increased capability of the DC gate operator line, this operator is unparalleled in its capability. Heavy duty torque limiter, huge solid aluminum no rust no bind hub, mechanical foot pedal release, built in loop rack, low profile design, and full time battery backup for seamless transition to battery mode in the event of a power failure
UL 325, UL 991 Compliant, ETL Listed
Warranty: Full 7 Year Residential, 5 Year Commercial Motor: 24VDC Brush-less Motor 1/2 HP Duty Cycle: Continuous Duty Power Options: 120\220 V AC Single Phrase Gear Box Ratio: 60:1 with internal clutch Cover: Rotationally Molded - Indestructible Dimensions: W: 14”- L: 24” – H: 18” Maximum Gate Length: 22 Feet Max. Maximum Gate Weight: 1/2 HP Motor: 2000 lbs. Gate Speed: 90 degrees travel in 19 sec. Emergency Release Options: Foot Pedal
