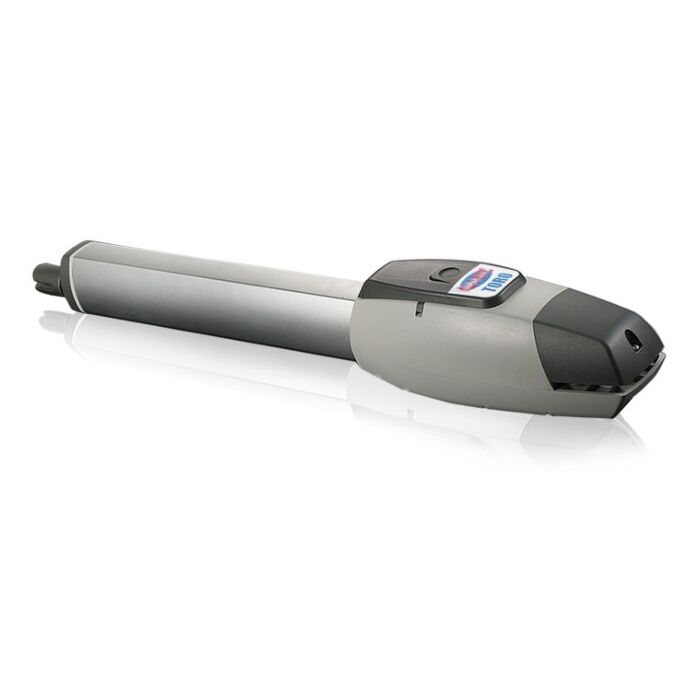

The TORO24 Swing Actuator offers an uninterrupted power supply. Manual keyed release for easy access when necessary. The Control board offers an array of features including programmable logic and an advanced charge controller enhanced for solar applications. It can take 12/24V solar panels up to 80 watts. This will cover most residential and light commercial applications. Just a single Control Board will handle a Master/Slave setup. ,
UL 325 &, UL 991 Compliant, ETL Listed Warranty: Full 4 Year Residential, 3 Year Commercial Motor: 24 VDC Motor Duty Cycle: Continuous Power Options: 120/220 VAC Single Phase Maximum Gate Weight &, Length: , , , , 1,600 lbs. / 8 ft - 1,200 lbs. / 12 ft. , , , , 800 lbs. / 16 ft. - 600 lbs. / 18 ft. Gate Speed: 15-20 sec. per 90 degree opening Operator Weight: 23 lbs. - Actuator Arm / 42 lbs. Control Box Emergency Release Options: Keyed Manual Release Knob Battery: Two 8 Ah Batteries 12 VDC Battery Backup: ,Integrated, Capable of up to 450 cycles , , , , (Single Swing Gate 12 ft / 800 lbs.) Solar Capabilities: 12VDC or 24VDC Solar Panel Input up to 80 Watts
