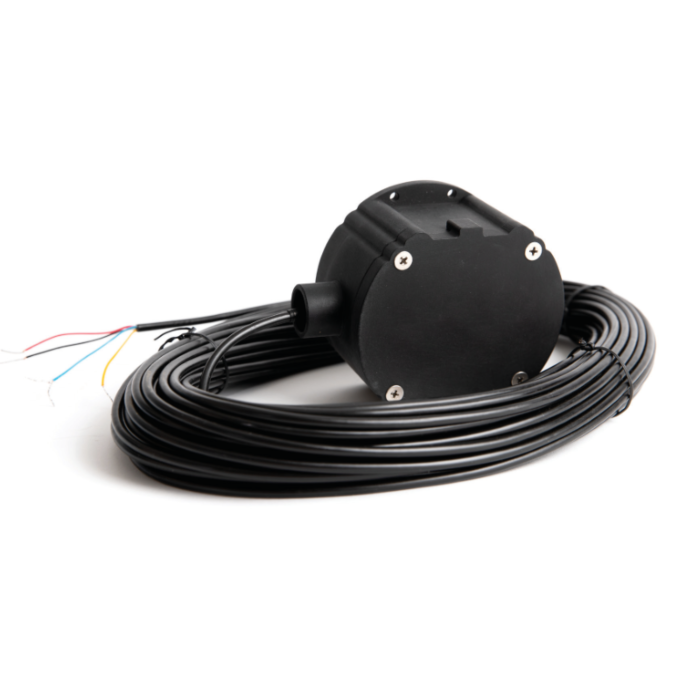

CARTELL CP-4 (AC OR DC OPERATORS) SENSING PROBE W/200' LEAD (8-24 VAC OR 8-30 VDC)
Product Description
More Information
Self-Contained System
Conduit Ready Housing
Sensitivity Adjustment
Lowest Standby Current
More Lightening Protection
Works With All Operators
The CP-4 is a free exit system that opens your automatic gate so you and your visitors can leave without having to use a remote or key fob to open the gate. This is a self-contained system that connects directly to any gate operator without an external output board. Buried beside the driveway, the CP-4 is hidden and vandal-proof. It covers a 12' wide driveway. It only detects moving steel, preventing the gate from being tripped open by animals or blowing objects. It accepts universal voltage (AC or DC), and works with any gate operator: solar or powered. It has the lowest stand-by current in the market, some 85-90% lower than its closest competition. It is the most solar friendly of any free exit system available.
Power Requirements: 8 - 24 VAC or 8 - 30 VDC Stand-by Current: 30-70 Microamps Relay Contact: SPDT, floating, N.O. or N.C (Form C) Relay Time: 2-3 seconds Dimensions: 4.5" dia x 3.5" high Weight: 5 lbs with 200' cable Cable Lead Length: 200 ft.
NOTE: FAILURE TO RUN CABLE IN CONDUIT WILL VOID WARRANTY! CONDUIT MUST BE NON-METALLIC!
