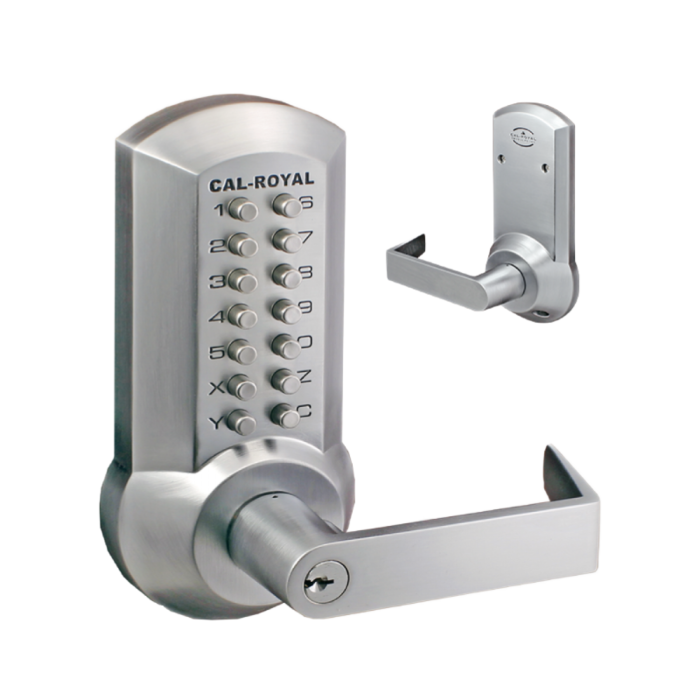

CAL-ROYAL MECHANICAL LOCK (WORKS WITH CR2200/9800 SERIES EXIT DEVICES)
Product Description
More Information
** WORKS WITH CR2200 AND CR9800 SERIES EXIT DEVICES **
GENERAL - Full length 5 ½” lever handle with 7/8" return. Escutcheon dimension 3½” x 8-1/8”. Key removable outside lever for all models for fast rekeying. Non-handed levers. 2-1/8” diameter bore.
BREAKAWAY LEVER DESIGN - Lever will stay at the 5 o’clock position when forced down without retracting the latch to prevent breaking of handle and giving the impression of the handle being broken to discourage or scare off vandals.
DOOR RANGE - 1-3/4" - 2”
ANSI STANDARDS - Meets or exceeds ANSI A 156.2 Series 4000 Grade 2 requirements.
TRIM - Thru-bolted assembly through door with separate spring cage for each lever.
SINGLE CODE USER - Only one code combination chosen from thousands of combinations can be set at a time to deter code breakers. Code length is from 1 to 12 digits and can be permutated with a non-repeating digit up to over 5000 combinations.
EASY ON-DOOR CODE CHANGE - Code can be changed without removing the lock from the door and using only a “code change” key.
1-12 DIGIT CODE - An entry code can be a combination of 1 to 12 digits long. The digits can be entered in any order. For example, if the chosen 6-digit code is “5283XZ” it can be entered as “ZX3825” or “3X8Z25” or in any other combination of the 6-digit code.
CODE-FREE OPTION (PASSAGE MODE) - Once enabled, the lock remains unlocked until disable passage mode is initiated.
WEATHER RESISTANT - Can resist above or below normal weather conditions without compromising security.
