MINI DOUBLE BUTTON KEY RING TRANSMITTER (MULTI CODE 3083-01)

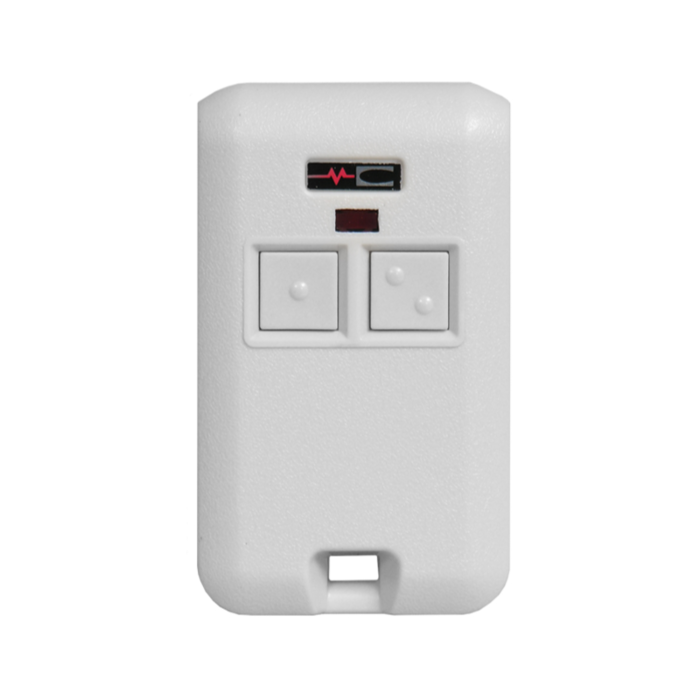

The Model 308301 2-Channel Key Ring Transmitter is a miniature style transmitter designed for automatic door and gate operator applications. This transmitter is a two-channel device. Pressing the left button on the transmitter will send a channel one signal. Pressing the right button on the transmitter will send a channel two signal. The buttons feature raised dimples for easy, or vision-impaired identification. A molded-in hole in the case is for attaching the transmitter to a key ring. The transmitter is Multi-Code format with two 10-position coding switches providing 1,024 possible codes for each channel. Independent coding supports activation of a common gate and a private door. The transmitter will only activate receivers set with the same code.

Features

• Compatible with 300 MHz Multi-Code receivers
• Easy access to battery and coding switches
• Power: 12-volt battery
• Codes: 1,024 codes for each channel (set by dip switches)
• RF frequency: 300 MHz
• Dimensions: 1.5″ W x 2.5″ H x 0.625″ D
