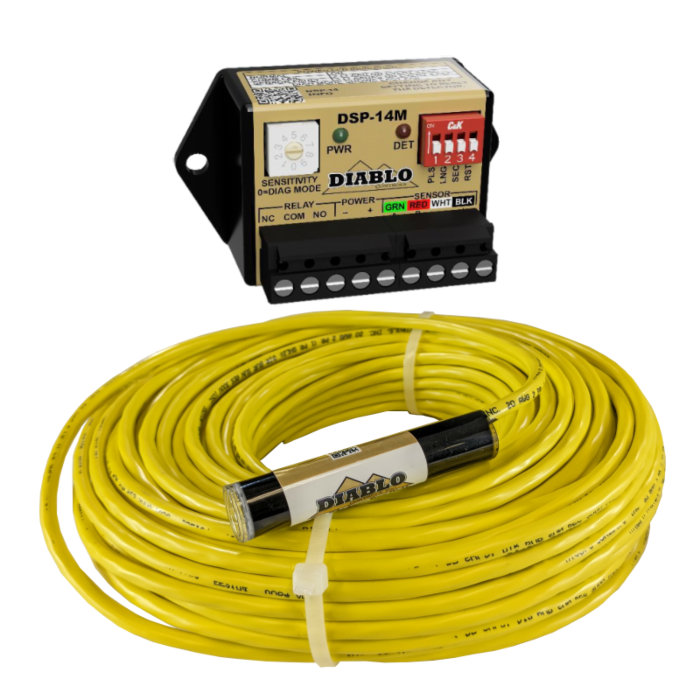

The DSP-14 system is designed to be an accurate, reliable and easy to install detection system. The system is comprised of two parts, a master unit (DSP-14M) and a sensor (DSP-14S). The advanced sensor’s small size and high sensitivity. make it ideally suited to vehicle detections applications.
The DS-14 sensor can be installed using a single saw cut and a single 1″ core hole. The sensor is potted in Epoxy to provide durability and small enough that it can be placed in the cored hole. Using a three-axis magnetometer sensor eliminates any concerns about the orientation of the sensor during installation.
The DSP-14 system can hold vehicle detection for an indefinite period of time. It can even remember vehicle detection through power outages. Even if a vehicle parks in the detection zone while power is removed, when power is restored, the detector will sense that there is now a vehicle in the detection zone. This gives you an extra level of safety not available with other detection systems.
Features
Easy installation. A single saw cut and cored hole is all you need.
Can be installed in PVC conduit installed under the driving surface, allowing for easy repositioning or replacement.
Indefinite vehicle detection, even through power interruptions.
Selectable Presence or Pulse operation.
Selectable length of time for the Pulse output.
9 selectable sensitivity settings allow for a wide range of uses.
Normally-Open and Normally-Closed Relay contacts allow flexibility in system connections.
Sensor monitoring provides is no longer functioning correctly.
Fault memory gives a unique display when a fault has occurred, but the system is currently functioning properly.
Diagnostic mode will show a prior fault self-corrected, if it occurred within the last seven days.
