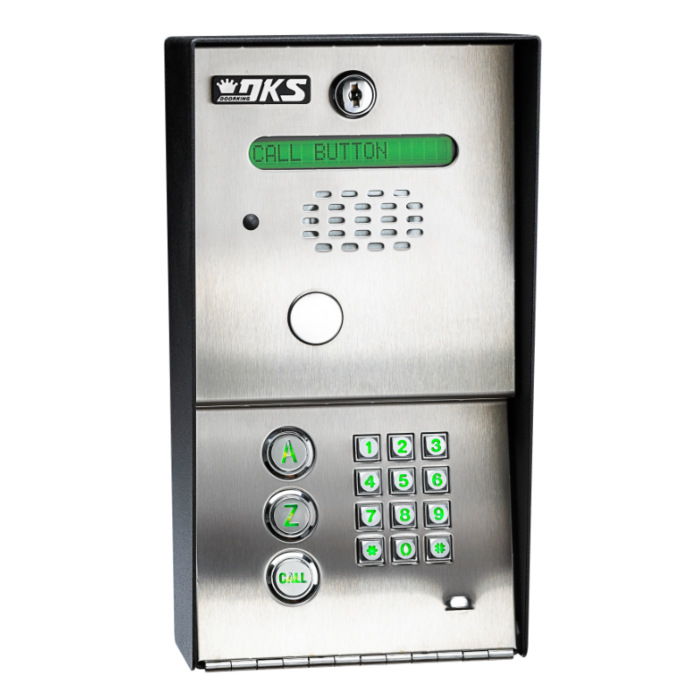

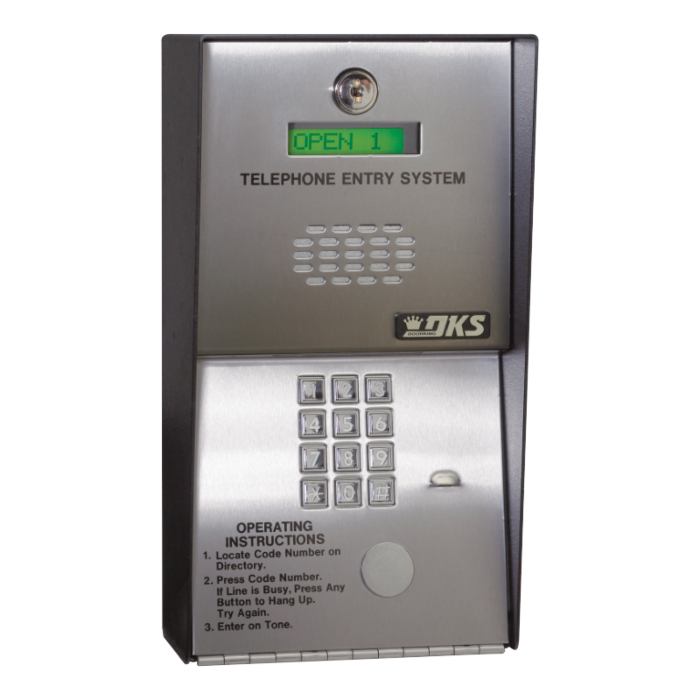

DOORKING 1802 "SURFACE MOUNT" TELEPHONE ENTRY SYSTEM
Product Description
More Information
Specifications
Stores up to 600 telephone numbers.
EEPROM Memory Chip.
Full duplex communication.
4-digit entry codes; Max. of 1000
Six, 5-digit entry codes.
16 VAC, 20 VA (250 ma) power transformer provided.
Ringer equivalence: 0.0 A.
Jack type: RJ11C or W.
FCC (US): DUF6VT-12874-OT-0
DOC (CAN): 1736 4507 A
Complies with UL 294; ETL Listed.
Mechanical
Programmable directory codes (1-4 digits).
16-digit dialing
Two special inputs can be programmed for relay activation or to dial out a preprogrammed phone number.
5-digit entry codes for special needs.
LED lighting illuminates keypad.
Built-in time clock.
Hold open time zones.
Entry code time zones.
“Flash” entry codes.
Built-in postal lock provision.
Includes programming display.
The DKS 1802-EPD is an ideal telephone entry system that is suited for applications that have limited space and can be used in residential as well as commercial applications. The built-in Electric Directory eliminates the need for external or add-on directories. Visitors are easily identified by voice communication and can be granted or denied access directly from a touch-tone telephone.
* 100 names &, number memory capacity * Full-Duplex Communication * Programmable directory codes (1-4 Digits) * 10 and 11 digit dialing capability * Built-in A-Z scroll buttons and CALL button * Two special inputs can be programmed for relay activation * Built-in clock provides automatic relay activation * Time zone restrictions on selected entry codes * 2 relays for door / gate control * Single-line electronic directory uses super-twist LCD with 5/16” characters * Built-in postal lock provision
