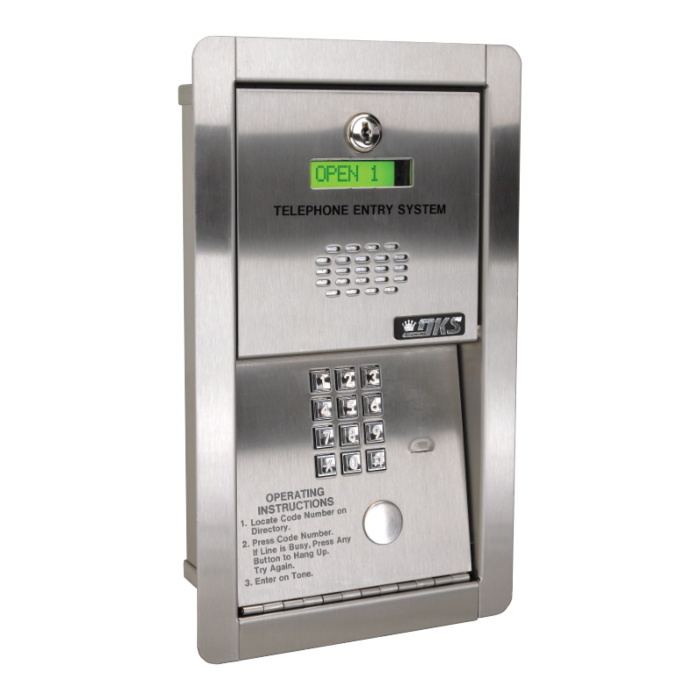

DOORKING 1802 "FLUSH MOUNT" TELEPHONE ENTRY SYSTEM

Specifications

• 1802 stores up to 600 telephone numbers.
• EEPROM Memory Chip.
• Full duplex communication.
• 4-digit entry codes; Max. of 1000
• Six, 5-digit entry codes.
• 16 VAC, 20 VA (250 ma) power transformer provided.
• Ringer equivalence: 0.0 A.
• Jack type: RJ11C or W.
• FCC (US): DUF6VT-12874-OT-0
• DOC (CAN): 1736 4507 A
• Complies with UL 294; ETL Listed.

Mechanical

• Programmable directory codes (1-4 digits).
• 16-digit dialing
• Two special inputs can be programmed for relay activation or to dial out a preprogrammed phone number.
• 5-digit entry codes for special needs.
• LED lighting illuminates keypad.
• Built-in time clock.
• Hold open time zones.
• Entry code time zones.
• “Flash” entry codes.
• Built-in postal lock provision.
• Includes programming display.
