DOORKING 90 SERIES "LARGE BOX" PHONE SYSTEM. ONE DESIGN FOR SURFACE, FLUSH, OR WALL MOUNT
Product Description
More Information

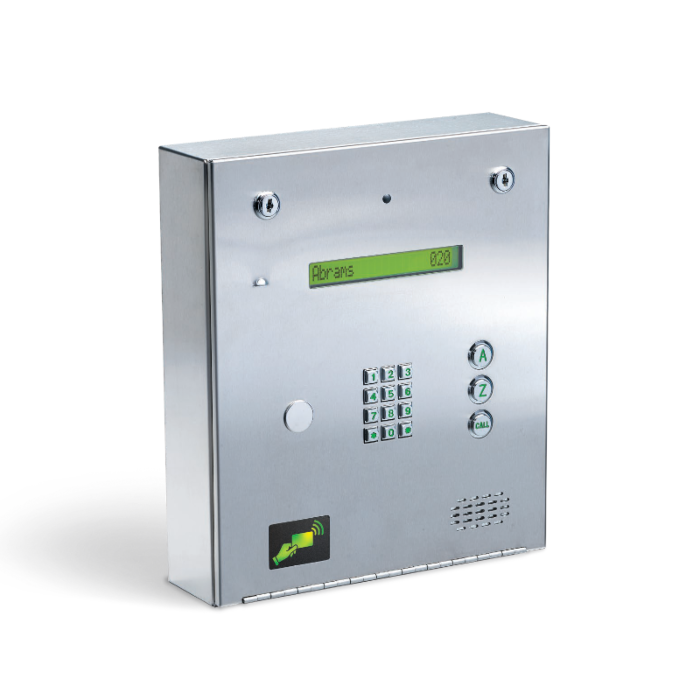

The Model 1834 is an ideal telephone entry system suited for apartment and gated community applications as well as office buildings and industrial sites that have a separate access control system, or require telephone entry only.
Features:
Large easy to use A and Z scroll buttons.
One Touch "CALL" button.
Built-in single-line LCD directory display.
Programmable directory codes (1-4 digits).
10 and 11-digit dialing capability.
Live Streaming.
Live transactions.
8000 event transaction buffer.
Database import/export capability.
LED Lighting illuminates keypad.
Built-in clock/calendar.
Holiday schedule.
Built-in postal lock provision.
Specifications:
True Full Duplex Communication.
Stores up to 3000 telephone numbers and names (names are limited to 15 characters max).
Stores up to 255 area codes.
8 hold open time zones.
4-digit entry codes, one for each telephone number.
2 form "C" dry contact relays.
Single-line directory display uses super-twist LCD with 1/2-inch characters.
EEPROM memory chip.
16 VAC, 20 VA power transformer supplied.
FCC (US): DUF6VT-12874-OT-T
DOC (CAN): 1736 4528 A
Compliant with UL 294. ETL listed.
Dimensions 90 Series
14.75" (375 mm) H x 12.75" (324 mm) W x 3.75" (95 mm) D.
