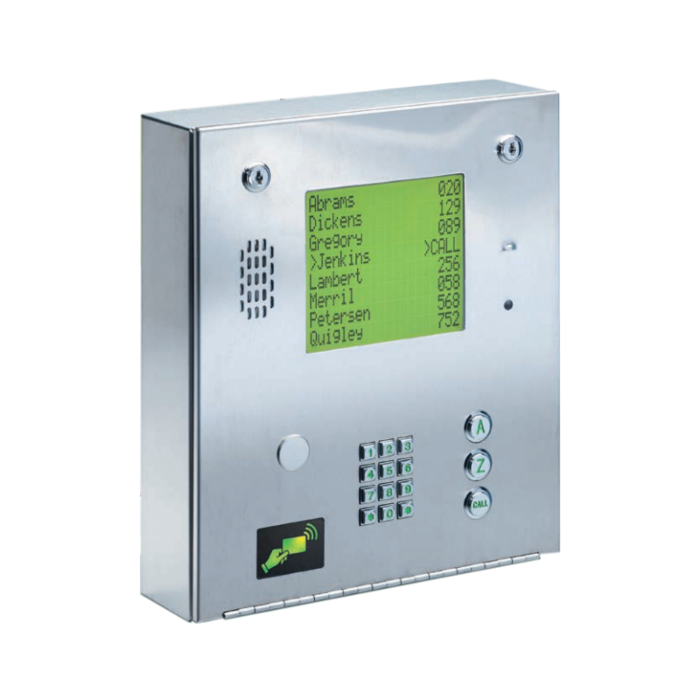

DOORKING 90 SERIES PHONE SYSTEM. ONE DESIGN FOR
SURFACE, FLUSH OR WALL MOUNT
Product Description
More Information
Best Suited for Applications Requiring Complete Access Control for up to 48 Entry Points, Including Elevator Control
Provides both resident and visitor Access Control into and within apartment buildings, gated communities, condominiums, office buildings, factories and industrial sites
Voice and Data Programming Connection via Cellular, Internet, or Copper POTS Lines
Built-In Electronic Directory
Large, Easy-to-Use A-Z-CALL Buttons
Resident Access Control is provided by means of Cards, Digital PIN Codes,or Wireless Transmitters.
Specifications:
Stores up to 8000 device (card) codes
Transaction buffer stores last 8000 events
Three anti-pass back configurations: passive, active and trap
Elevator control for up to 8 elevators, each serving 64 floors
Expandable to control up to 48 wired entry points (or 24 wirelessly)
4-digit entry codes, one for each telephone number
Eight-line directory display uses super-twist LCD with 1/2-inch characters
EEPROM memory chip
Compliant with UL 294. ETL listed
3 form “C” dry contact relays
16 VAC (2 Power Transformers included)
Full Duplex Hands-Free Voice Communication
10 Facility Codes
Programmable Directory Codes (1 to 4 digits)
10 & 11-Digit Dialing Capability
31 Security / Permission Levels, 29 Programmable with 4 Time Zones Each
32 Holiday Schedules
Built-In Clock / Calendar
8 Hold-Open Time Zones
Entry Code Time Zones
True Anti-Pass Back
Live Transactions Feature (requires TCP / IP internet connection or RS-232 connection)
