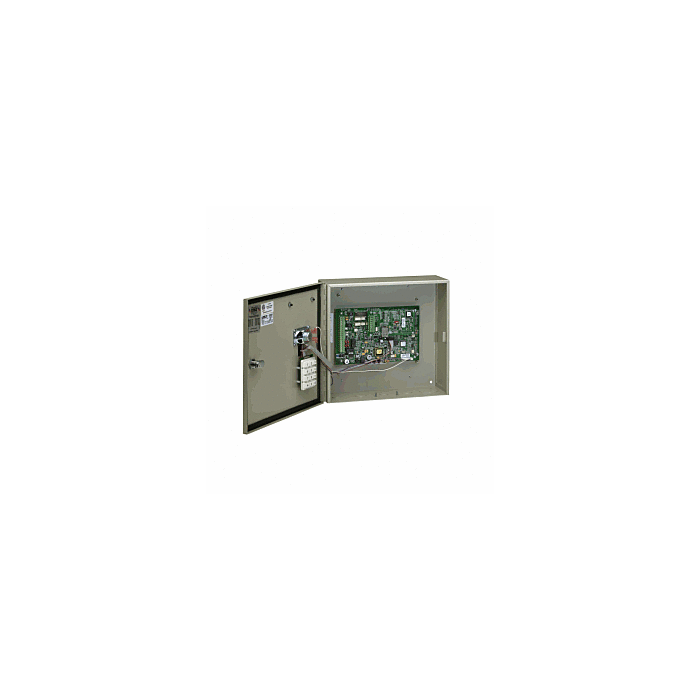

DOORKING ""MULTI DOOR"" CONTROLLER 3000 CODES (REPLACES DK1838-080)

THE MODEL 1838 multi-door access controller is ideal for any application that requires access control and reporting capabilities. The 1838 is a 2-door controller that easily expands to control up to 16 doors. This flexible system allows you to control access by means of encoded cards, five digit PINs (Personal Identification Number), wireless RF control, or with almost any 26-bit weigand devices. Additionally, our elevator control module restricts which floors system users have access to, making it an ideal system for high rise buildings. For additional security, the 1838 allows you to monitor activity AS IT HAPPENS on your computer display and with our anti-pass back memory, you can enable a TRUE anti-pass back system in one of three different configurations, passive, active and trap. With a 3000 user capacity, 8000 card code capacity and 8000 event history buffer, 31 security levels, elevator control and more, the 1838 out performs other controllers in its class.
10.25"" H x 12.25"" W x 4.25"" D

* Stores up to 3000 user names. Memory sizes available: 500, 3000.
* Stores up to 255 area codes.
* Transaction buffer stores last 8000 events.
* Stores up to 8000 access card codes - dependent on system memory.
* 31 security (permission) levels, 29 programmable with 4 time zones each.
* Three anti-pass back configurations: passive, active and trap.
* Elevator control (note 1) for up to 4 elevators, each serving 64 floors.
* Expandable (note 2) to control up to 16 entry points.
* 4-digit entry codes, one for each telephone number.
* 3 form ""C"" dry contact relays.
* EEPROM memory.
* Two 16 VAC, 20 VA power transformers supplied.
* Compliant with UL 294. ETL listed.
