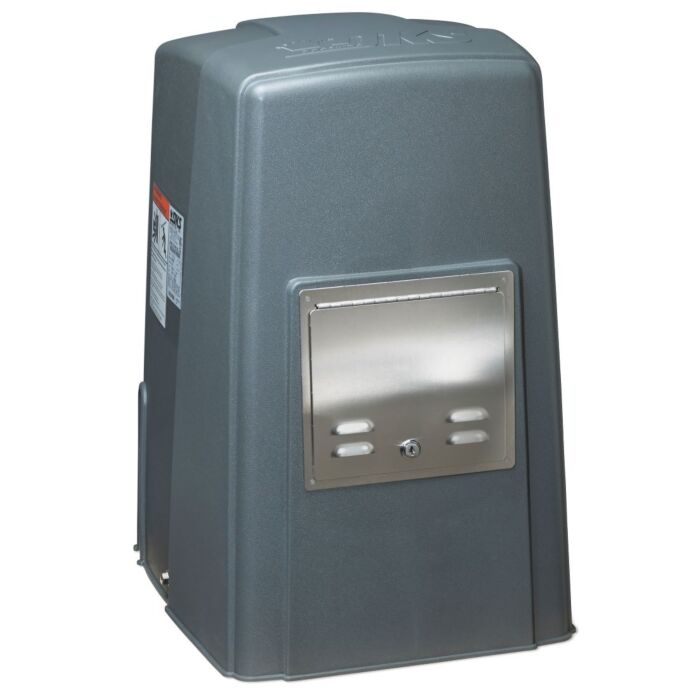

DOORKING 1/2 HP AC/DC SLIDE GATE OPERATOR 40'/ 1000 LBS
Product Description
More Information
The new DKS 9024 Slide Gate Operator keeps running when AC power has been lost. This slide gate operator offers convenience, reliability and safe operation in a small, compact design and is ideally suited for residential or commercial applications. The 1/2 HP Quadra Drive DC Motor provides powerful and long lasting operation and is backed up with built-in 7.2 Ah batteries to provide operation if AC power is interrupted. The 9024 features a belt drive/30:1 gear-box reduction system to provide powerful, yet extremely quiet, slide gate operation. The 9024 uses an advanced microprocessor control circuit with outstanding features. Designed with versatility in mind, the DKS Model 9024 provides everything you expect from a gate operator in this class – and more.
Features:
Two 7.2 Ah Batteries
Powerful 1/2 HP Quadra Drive motor for long life
Heavy-duty gearbox
Heavy-duty steel frame provides strength and quiet operation
“T-Handle” release is easily accessible from front of operator
Operator re-connects automatically when handle is released
Adjustable limit nuts for precise gate control
Auto-close timer 1-30 seconds
Selectable loop/reverse input function; stop or reverse
Anti-tailgating feature helps to control un-authorized traffic
Standard normally closed stop circuit
DC Power Shut-Off switch
Battery protection circuit
Ports for plug-in open and reverse loop detectors – DKS detectors only
Gate Tracker reporting output provides operator data to access control system (DKS 1833, 1835, 1837 or 1838 only)
Specifications:
Maximum gate width 40 ft. (12.2 m)
Maximum gate weight 1000 pounds (453.6 m). (Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
1/2 HP Quadra Drive motor, continuous operation with AC source power available.
115, 230 VAC input: 1.8 A / 0.9 A or 24 VDC Input 8.0 A.
Class I, II, III, IV applications
Dimensions: 16.75"W x 28"H x 19"D (42.5cm W x 71cm H x 48.3cm D)
