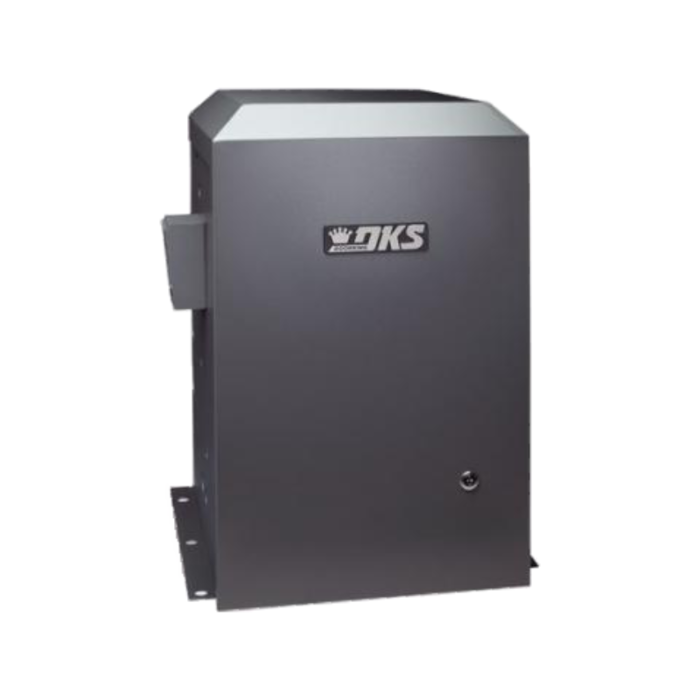

DOORKING 1 HP COMMERCIAL SLIDER 45'/ 1500 LBS (METAL COVER)
Product Description
More Information
Model 9150 operators are designed to operate vehicular slide gates in residential, commercial and industrial applications. These operators are designed so that they can easily be mounted in the front, center or rear of the gate without any costly and time consuming field modifications. In addition, the operators can be pad or post mounted to meet any installation requirements.
Features:
Self-adjusting, no maintenance magnetic limits.
Partial-open feature.
Anti-tailgating feature.
Gate tracker reporting output.
Ports for plug-in loop detectors.
Two convenience outlets.
Fail-safe release (fail-secure optional).
Programming switches.
Built-in reset switch.
Built-in power On/Off switch
Model 9150 with 1 HP Motor
Maximum gate length 45-feet.
Maximum gate weight 1500 pounds*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator. If DC Convenience Open option is installed, maximum gate weight is 1300 pounds. Other external factors may affect the performance of the gate operator.)
1 HP continuous-duty motor.
115, 208*, 230*, 460* VAC (*208, 230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
Operator is shipped with chain brackets and 20-feet of #40 chain.
Class I, II, III and IV applications.
Compliant with UL 325 and 991. ETL listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
