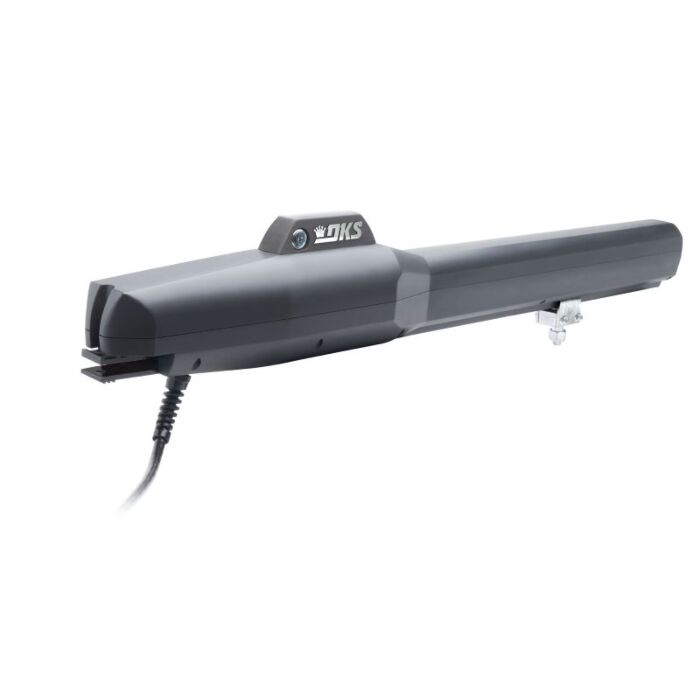

The DKS swing gate actuator offers convenience and reliability in a compact design. The actuator mounts directly on your gate and pilaster, simplifying installation and eliminating the need for concrete pads. The elegant lines provide a clean profile that will blend with any gate design. But beauty is not just skin deep with the DKS actuator. The powerful screw driven piston is enclosed and protected to prevent dirt and other airborne corrosives from contaminating the screw threads. And there is no need to worry about hydraulic leaks, check valves or pumps. Built-in no-contact magnetic limit switches precisely control the start / stop speed of the actuator, all powered by a microprocessor control board.
Features:
Internal adjustable no contact magnetic limit switches.
Overlap feature for dual swing gate operation.
Magnetic lock output.
Screw drive.
Fully enclosed gear-reduction to maintain lubrication.
24 VDC operating power.
Built-in battery back-up.
Separate control panel.
Keyed release for manual operation.
Specifications:
Gate Maximums: (Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.) 8 Ft. (2.43m) @ 1600 lbs (725.7kg) 16 Ft. (4.87m) @ 800 lbs (362.8kg) 18 Ft. (5.48m) @ 600 lbs (272.1kg)
Speed: 90° in approximately 18-20 seconds
Actuator operates at 24 Volts DC power.
Dimensions (actuator only): 4" (10.1cm)D x 6.25" (15.8cm)H x 40" (101.6cm)L
