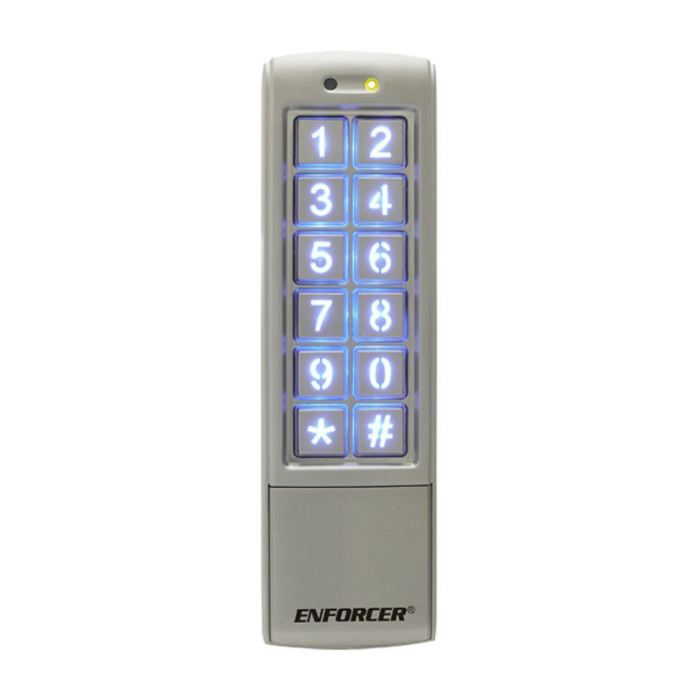

ENFORCER KEYPAD W/PROXIMITY READER (MULLION STYLE)

Features:

• 12~24 VAC/VDC operation
• 1,010 Users (Output #1: 1,000 users, Output #2: 10 users)
• 2 Form C relays, each rated 1 Amp @ 30VDC
• Each relay has programmable output time from 1~99 seconds or toggle
• Output #2 can be programmed for use with a doorbell
• 2 Egress inputs and 1 door sensor input
• Backlit keys for easy nighttime use
• 2 Multi-colored status LEDs
• All features are programmed directly from the keypad – no need for an external programmer
• EEPROM memory protects programmed information in case of power loss
• Optical tamper sensor for added security
• Circuitry is potted with epoxy for outdoor use
• IP65 Weatherproof rating, rugged aluminum construction
• Built-in proximity card reader
• 3 Programmable access modes for Output #1: Card Only, Card or Code, and Card with Code
• Output #2 may have either a card or a code programmed for each user

Specifications:

• Type: Mullion-Style Weatherproof Digital Access Keypads
• Number of User Codes: Up to 1,010
• Operating Voltage: 12~24 VAC/VDC
• Current Draw - Standby: 64mA@12VDC
• Current Draw - Active: 1 Relay active 92mA@12VDC 2 Relays active 120mA@12VDC
• Relay Outputs (2): 1A@30VDC, Form C, NO/COM/NC
• IP Rating: Weatherproof IP65
• Egress Inputs: 2, N.O. Ground
• Door Sensor Input: N.C. Ground
• Tamper Sensor: Optical
• Proximity Reader Frequency: 125kHz
• Keypad LED Life: 60,000 hours (over 6.8 years)
• Proximity Reader Sensing Distance: 1-15/16" (50 mm)
• Operating Temperature: -4°~122° F (-20°~50° C)
• Dimensions: 6" x 1-3/4" x 15/16" (152x44x24 mm)
• Weight: 11-oz (312g)
