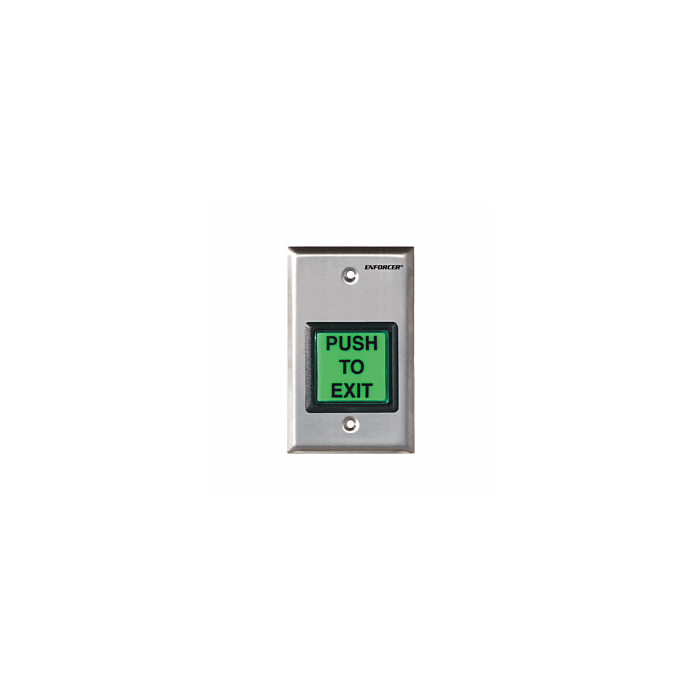

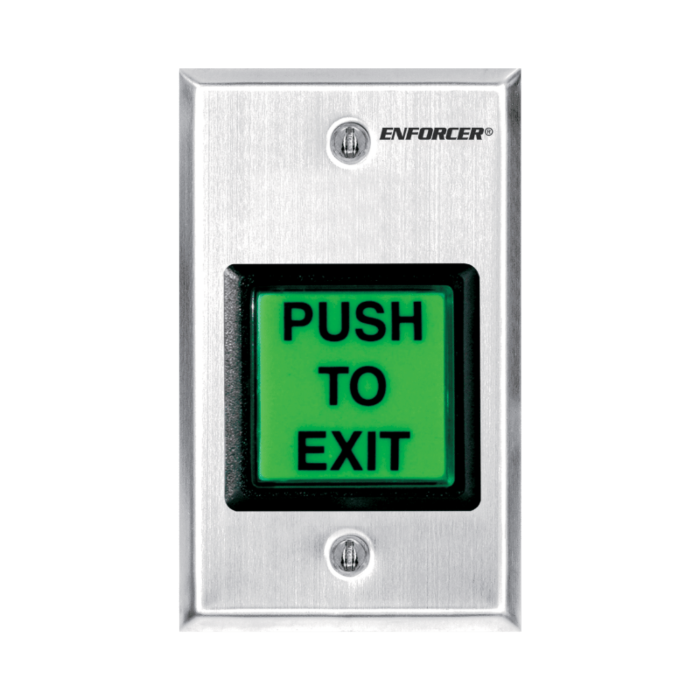

ENFORCER "PUSH TO EXIT" BUTTON (SD-7202GC-PEQ)

Square Illuminated Pushbutton Request-to-Exit Plate

• ETL, Conforms to UL Std. 294
• Large illuminated pushbutton with caption “PUSH TO EXIT“
• Message language can be easily switched between English, Spanish, and French with 3 included interchangeable plates
• Includes five colored 12-inch wire leads with easy-to-attach spade lugs for fast installation
• LED Gives over 50,000 hours of illumination
• 12~24 VDC: No resistors required
• Includes stainless-steel single-gang plate

Specifications

Operating voltage: 12~24VDC

Current rating: 50A@24VAC

Faceplate: Brushed stainless

Destructive attack level: Level I

Line security: Level I

Endurance level: Level I

Standby power: Level I

Timer and buzzer output: No

LED status indicator: No

IP rating: IP65 Weatherproof

Operating temperature: -40°~167° F (-40°~75° C)

Dimensions: 4-1/2” x 2-3/4” x 2-3/4” (114x70x70 mm)
