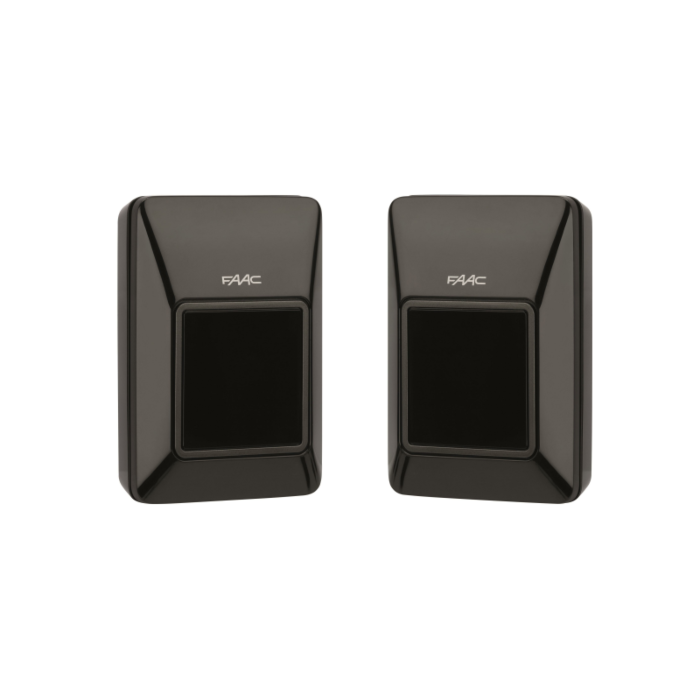

FAAC XP30 PHOTOBEAM

Photobeam is a directional photocell with alignment facility consisting of a modular infrared transmitter and receiver. It is classed as a safety device. Breaking the luminous beam causes the state of the electric contact on the receiver to be switched.

Specifications:

Power supply: 24 VDC (19 ÷ 35 VDC) / 24 VAC (21, 5 ÷ 25, 5 VAC)

Photocells Max Distance: 100 ft (30 m)

Input: Tx= 20 mA  Rx= 30 mA

Beam Response Time: 10m Sec

Contact Rating: 100 mA / 24 VDC

Detection Angle:  +/- 4°

Installation Type: Wall/Column

Protection Class: IP54

Alignment: Automatic

Auto-Alignment Angle: +/-7° (65 ft / 20 m) +/- 13.5° (16 ft / 5 m)

Dimensions (LxDxH): 2.2 x 0.85 x 3.1 in (55.4 x 21.5 x 78.4 mm)

Absorbed Current: Rx (30 mA) + Tx (20 mA)

Output Types: Relay - N.C./N.O.

Contact Ratings: 60 VA / 24 W

Temperature: -4°F - 131°F (-20°C - +55°C)
