LOCKEY "EDGE" PANIC SHIELD SECURITY KIT (STAINLESS STEEL PANIC DEVICE)

Stainless Steel Panic Device Only, All Other Items in the Kit Have a Silver Finish

Features

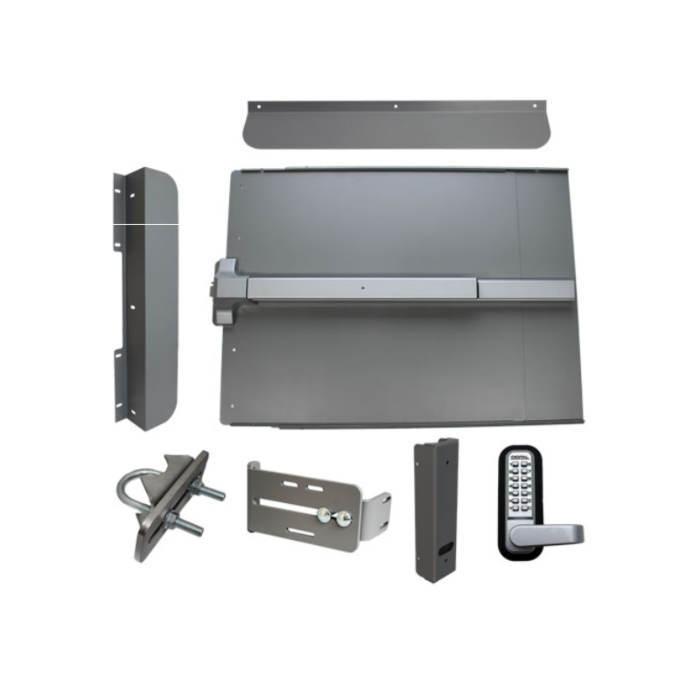

Kit Includes:
Edge Style Panic Shield
Edge Style Strike Bracket
285P Keyless Keypad Lock
Edge Style 285P Gate Box
Edge Style Max Guard
Edge Style Latch Protector
Jamb Stop
PB1100 33″ Panic Bar

Dimensions & Specifications

Panic Shield Dimensions: 24″ L x (28″ – 54″) W x 1/2″ D
Strike Bracket Dimensions: 4 1/2″ L x 3 1/2″ W x 1 1/4″ D
Latch Protector Dimensions: 23 1/2″ L x 6″ W x 2 1/2″ D
Jamb Stop Dimensions: 5″ L x 2″ W x 1/4″ D
Max Guard Dimensions: 26″ L x 4 3/4″ W x 3/4″ D
Lock Gate Box Dimensions (PSGB200): 7″ L x 1 3/4″ W x 1 1/2″ D
Lock Dimensions (285P): 5 1/2″ L x 1 5/8″ W x 2 1/4″ D
Panic Bar Length: 33″ (36″ Doors) or 42″ (48″ Doors)
