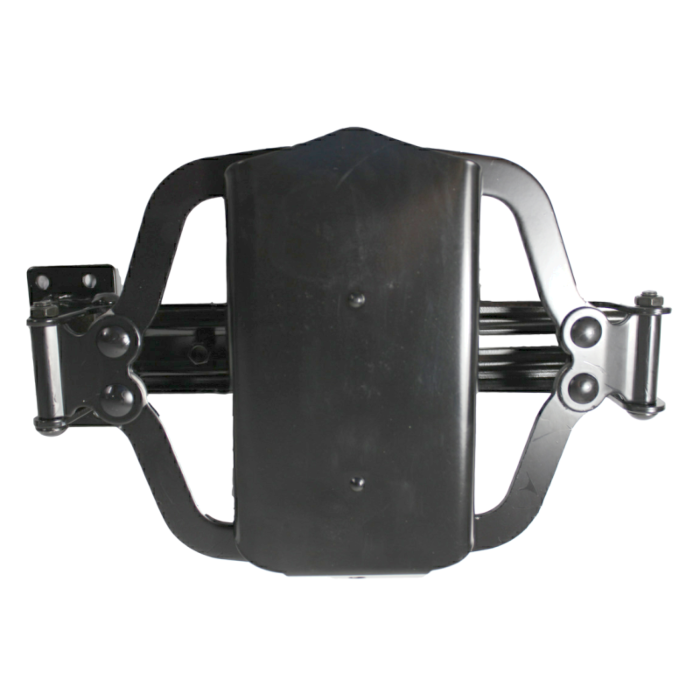

| The TB100 Turtle Back Hydraulic Gate Closer is designed to push a gate closed with adjustable hydraulic speed control. The closing speed is fully adjustable, allowing the gate to close in a controlled manner. The TB100 is recommended for pool, garden and barrier gates, as well as lightweight (non fire-rated) doors.
The TB100 works best on gates with in-line/flush hinges to the gate post with 1"" or less gap between the gate post and gate.
Features:
- Gently closes both large and small gates up to 125 lbs
- Adjusting screw regulates closing speeds
- Installs on side, top, middle or bottom on both right and left-hand gates
- Mounts on opening side of gate and pushes the gate closed
Technical Overview
- Maximum Gate Weight: , , , 125 lbs
- Maximum Gate Width: , , , , , 54 in.
- Maximum Opening Angle: 90 degrees
- Type of Gate Material: , , , , , Vinyl, Wood, Steel
- Gate Closing Speed: , , , , , , , , , Adjustable
- Material: , , , , , , , , , , , , , , , , , , , , , , , , , , , Steel
- Color: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Black
- Finish: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Powder Coated
- Opening Pressure: , , , , , , , , , , , , , Variable Depending on Gate Size
- Mounting Bracket: , , , , , , , , , , , , , 3 1/4"" x 1 3/4""
- Dimensions: , , , , , , , , , , , , , , , , , , , , , , , ,2 1/2"" D x 7 1/2"" H x 13"" W
* Specifications are based on a non-solid core gate with no wind |
