THIS IS A SPECIAL ORDER ITEM ***
Features: - Closes large and small gates up to 250 lbs. easily and gently
- Hydraulic/Nitrogen Gas controlled closing speed
- Installs on side, top, middle or bottom of right or left hand gates
- Mounts on opening side of gate, pushing the gate closed
- Maximum opening angle of 100 degrees (LockeyUSA recommends ,use of a mechanical stop to restrict opening angle)
- Mounting brackets and fitting bar included
- Not compatible with gates less than 30 inches wide
- Black powder coated steel or stainless steel finish Technical Overview: Gate Weight: ,150-250 lbs. ,
Gate Width: ,44-72 in.
Max. Opening Angle: ,100 degrees
Min. Operating Temperature: ,15 degrees Fahrenheit
Max. Operating Temperature: ,122 degrees Fahrenheit
Type of Gate Material: ,Vinyl, Steel, Wood, Chain Link*
Closing/Latch Method: ,Hydraulic/Nitrogen Gas
Material: ,Steel or Stainless Steel
Color: ,
- ,TB600: Black
- ,TB600SS: Stainless Steel
Finish: ,Powder coated ,
Hinge Arrangements: ,In-line or Offset
Opening Pressure: ,Approx. 8-18 lbs.

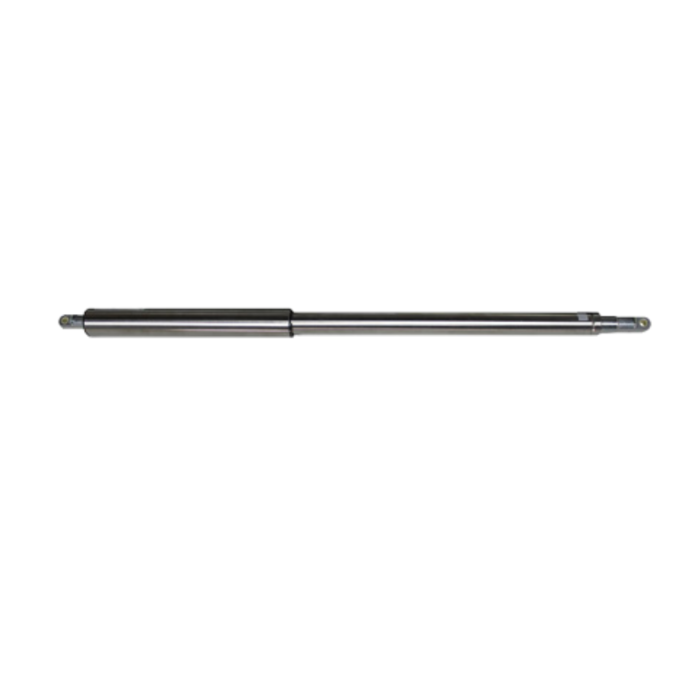

Lockey Pedestrian Gate Closers are an economic and reliable automatic gate closer for use with commercial gates. Unlike normal closing springs, Lockey Pedestrian Gate Closers do not slam gates shut. They firmly and quietly push gates closed, protecting your lock components and latching devices. The closing speed is pre-set to provide a controlled close of 8 seconds or more, depending upon the weight of gate and quality of hinges. With this closer there is no risk of maladjustment or tampering with the speed adjustment after the closer is fitted. Lockey Pedestrian Gate Closers are extremely simple to install. Each gate closer kit includes mounting brackets, fitting bar and instructions. As with most gate closers,it is advisable to install a mechanical stop to restrict the gate opening angle and avoid damaging the closer. 31” length x 1-1/2” Dia. Max. Wt. 6.5 lbs. 1 Year Warranty. |
