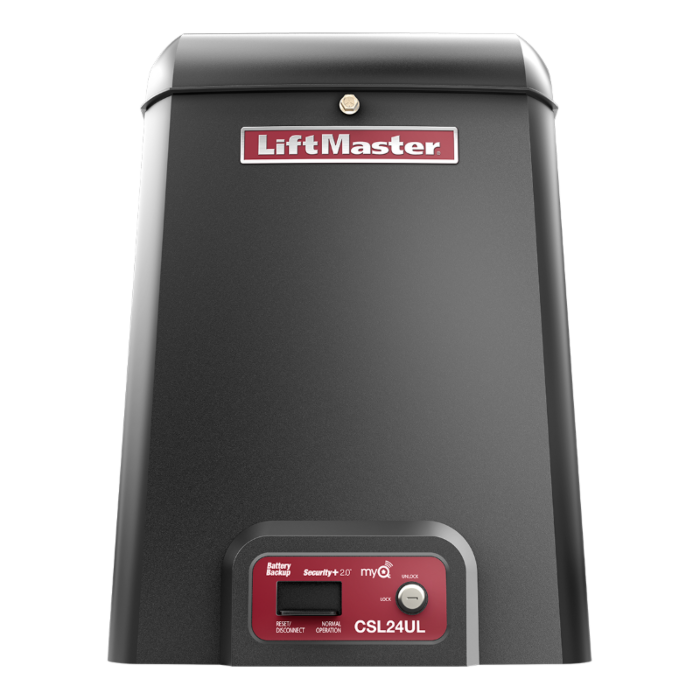

LIFTMASTER 24V DC "SLIDING" GATE OPERATOR (50'/1500#)

*** Included Accessories ***

• LMRRUL - Monitored Retro Reflective Photo Eye. Enhanced retro-reflective photo eye now with heater and wider polarized beam, engineered to stay aligned; max. Range: 50 ft.
• LMS505AL - Monitored Small Profile resistive edge. Pressure-sensitive edge stops and/or reverses gate when obstructed.

Reliable

• Battery Backup provides seamless access by providing standby power when the power is down.
• Commercial Gear-Driven Transmission provides unsurpassed reliability.
• Smooth start/stop operation and mid-travel reversal extend operator hardware life.

Smart

• myQ® Technology enables you to securely control and monitor your gate operator from anywhere.
• Wireless Dual-Gate Communication synchronizes gate opening/closing and eliminates expensive driveway trenching costs.

Safe and Secure

• Safeeguards access to property with an encrypted signal to offer extended range with Security+2.0.
• Quick Close and Anti-Tailgate quickly secures the property, preventing unauthorized access.
• Fire Department Compliance allows gate to auto-open upon loss of ac power or battery depletion.
• Manual Disconnect when unlocked allows gate to be opened manually.
• UL® Listed gate operators with monitored safety entrapment protection devices.

Mechanics

• 24VDC Continuous duty
• Operator Duty Rating: high-cycle, high-temperature continuous duty
• Wormgear Reduction: Commercial oil-bath gearbox provides 10:1 Wormgear reduction
• Chain: #41 Black Oxide (30ft. Supplied)

Power

• 120/230V single-phase
• Optional Kit (3PHCONV) to convert an input voltage of 208/230/460/575VAC to an output voltage of 120VAC
• Solar-Ready Ultra-Reliable System delivers power when and where you need it
• Accessory Power: 24VDC 500mA output; switched and un-switched power

Commercial Grade Design

• Chassis: constructed with 1/4 in. gold zinc-plated steel for rust prevention
• Cover: high-density, UV-resistant polycarbonate 2-piece cover for excellent heat and corrosion resistance
• UL® Usage Classification: I, II, III, and IV
• Operator Weight: 140 lbs.

Dimensions

• Height: 25.07”
• Width: 15.55”
• Depth: 19.51”

• Without heater: -4°F (-20°C)
• With heater: (HTR) -40°F (-40°C)

Temperature Specifications When Hot:

• Without heater: 140°F (60°C)
• With heater: (HTR) 140°F (60°C)

Gate Speed:

• 12” per second
