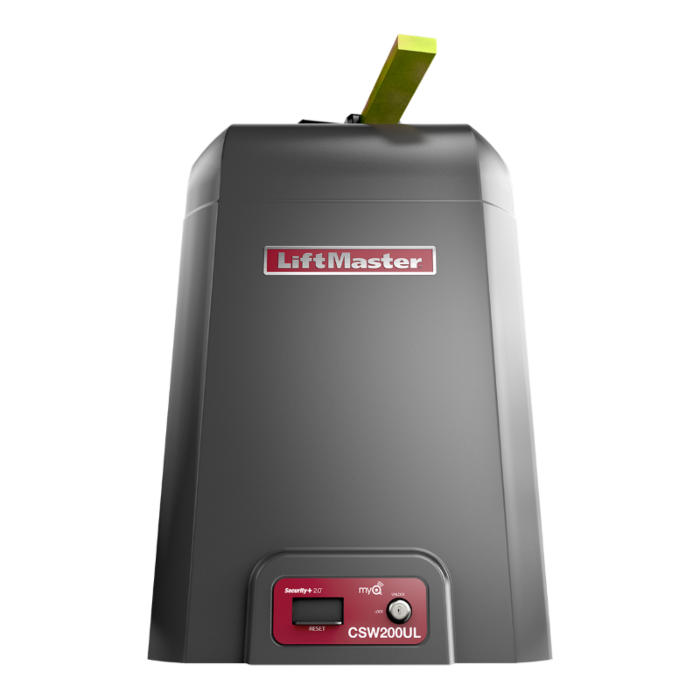

LIFTMASTER 1 H.P. COMMERCIAL "SWINGING" GATE OPERATOR

PLEASE NOTE: A TARIFF FEE WILL BE ADDED TO THIS ITEM AT CHECKOUT ***

Included Accessories:

• LMRRUL Monitored Retro Reflective Photo Eye enhanced retro-reflective photo eye now with heater and wider polarized beam, engineered to stay aligned; max. Range: 50 ft.

Reliable

• Legacy Elite Heavy-Duty Commercial Gear-Driven Transmission provides unsurpassed reliability.
• Surge Suppression provides industrial surge and lightning protection against strikes up to 50 feet away.

Smart

• myQ® Technology enables you to securely control and monitor your gate operator from anywhere.
• Wireless Dual-Gate Communication synchronizes gate opening/closing and eliminates expensive driveway trenching costs.
• Synchronized Close simultaneously closes gates.

Safe and Secure

• Security+ 2.0® safeguards access to property with an encrypted signal to offer extended range with Security+2.0.
• Emergency Disconnect: simple-to-use release handle allows gate to be operated manually and maintain limit position once reengaged.
• Inherent Reversing Sensor detects obstructions and reverses gate when closing or stops/reverses the gate when opening.
• Quick Close And Anti-Tailgate quickly secure property, preventing unauthorized access.
• UL® Listed gate operators with monitored safety entrapment protection devices.

Mechanics

• Continuous-Duty Motor rated for high-cycle, high-temperature applications (available in 1/2 and 1 HP)
• Wormgear Reduction: 2 commercial oil-bath gearboxes providing 900:1 wormgear reduction

Power

• 115V Single-Phase
• Accessory Power: 24VDC 500mA output

Commercial Grade Design

• Chassis: constructed with 1/4 in. gold zinc-plated steel for rust prevention
• Cover: high-density, 2-piece UV-resistant polyethylene cover
• UL® Usage Classification: I, II, III and IV operator weight: 175 lbs.

Dimensions for CSW200101UL

• Height: 27.99”
• Width: 15.20”
• Depth: 24.75”

Temperature Specifications

• Without Heater -4°F (-20°C ) to 140°F (60°C)
• With Optional Heater (HTRNB) -40°F (-40°C ) to 140°F (60°C)

Gate Travel Speed

• Opens 90° in 13-15 seconds

Standard Features

• Pre-Motion Warning Alarm activates on-board alarm 3 seconds prior to gate motion
• Bi-Part Delay monitors and adjusts speed and position of each wing to ensure primary gate closes last
• Mechanical Limit System maintains accurate gate position throughout gate travel, even after using manual disconnect
• Monitored Safety Inputs 3 main board, 3 expansion board
• Security+ 2.0® Up to 50 remote controls (unlimited with 811lm/813lm).
• Led Diagnostic Display simplifies installation and troubleshooting
• Programmable Auxiliary Relays make adding additional features easy
