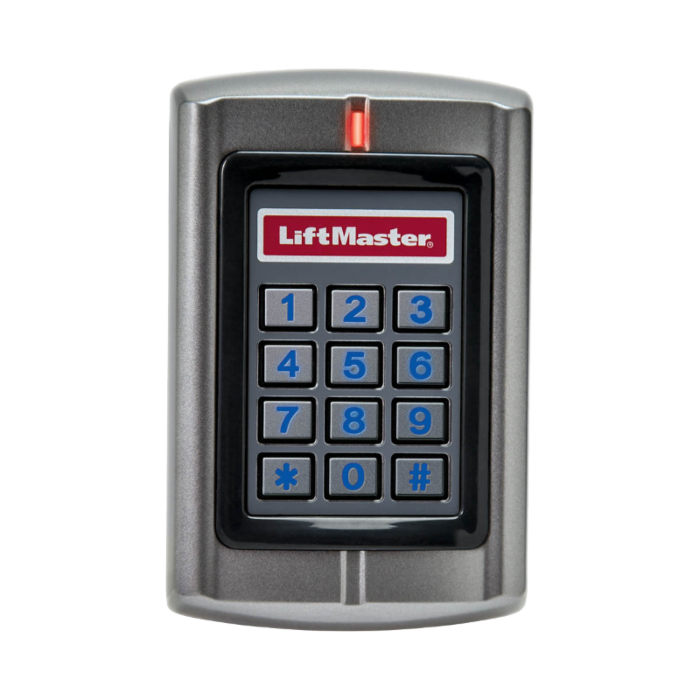

LiftMaster’s KPR2000 is a feature-rich keypad and proximity card reader access controller that is simple to install and looks great, making it an excellent choice for both Residential and Commercial applications. A secure and vandal-resistant enclosure with a gray powdercoated finish creates an upscale and stylish appearance. A multicolor LED Status Display and blue backlighting of the keys assures day or night visibility. Install the KPR2000 on any pedestal and pair it with a LiftMaster Gate or Commercial Door Operator for a superior complete access control solution.
Performance
The KPR2000 supports a maximum of 2,000 users in multiple access configurations (card only, 4 to 6 digit PIN only, or a combination of card and PIN). Supports HID 26 and 30-bit Wiegand proximity card formats.
Designed for outdoor environments with a sealed, weather proof design allowing you to easily mount anywhere.
Functions as a Stand-Alone Controller or in Pass-Through Mode (Wiegand Keypad, Wiegand Proximity Credentials, ASCII Keypad).
Latch Mode allows you to hold open a door or gate for an extended period of time.
Rapid Programming and Block Enrollment capability, “Add” and “Delete” program cards included.
Programmable Output Relay with adjustable contact time appropriate for Gate Operator, Commercial Door Operator, Door Strike or Solenoid Lock.
Capable of networking two KPR2000s, PPWR to the KPR2000 or to most Access Control Systems.
Safety and Security
Rugged Vandal-Resistant Backlit Metal Enclosure to protect casing from unwanted entry.
Anti-Tamper Alarm alerts you when someone has attempted to open the case while powered.
Integrated Alarm Buzzer and Output allows you to set additional security alarms.
Specifications
Local User Capacity: 2000
Max Number Of Gates/Doors of control (Each): 1
Operating Temperature: -4°F to 140°F (-20°C to 60°C)
Unit Interface Capabilities: Card/PIN
Wiegand Output Data Format: 26 and 30 Bit, ASCII for PIN
