LIFTMASTER SINGLE ARM RESIDENTIAL LA412 GATE OPERATOR PACKAGE W/ SOLAR PANEL
Product Description
More Information
PLEASE NOTE: A TARIFF FEE WILL BE ADDED TO THIS ITEM AT CHECKOUT ***

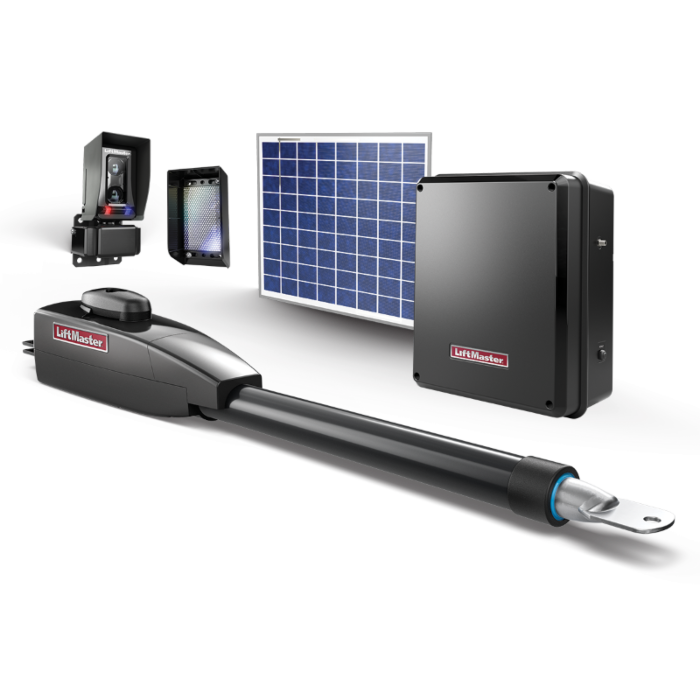

Single Arm Package Includes:
12VDC Solar Residential Linear Actuator
Solar Control Box
10 Watt Solar Panel Kit
Retro-Reflective Photo Eye
Solar Model Secures and safeguards your property by providing a solar charge to the battery-run system.
Security+ 2.0 Safeguards access to property with an encrypted signal to offer extended range with Security+ 2.0.
myQ® Securely control and monitor your Gate Operator from anywhere and get activity notifications through the myQ app.
P3 Motors® LiftMaster has designed its own purpose built motor to meet the exact requirements needed to open and close your gate.
Features
LED Diagnostic Display Simplifies installation and troubleshooting.
Solar-Ready Ultra-Reliable System Simple solar conversion.
Programmable Auxiliary Relays easily add additional features, such as warning lights/alarms.
Bi-Part Delay Monitors and adjusts speed and position of each wing to ensure primary gate closes last.
Synchronized Close Simultaneously closes gates.
Keyed Manual Disconnect When unlocked, allows gate to be operated manually.
Inherent Reversing Sensor Detects obstructions or increased loads. Reverses gate when closing or tops/reverses the gate when opening.
Fire Department Compliance Allows gate to auto open upon loss of AC power or battery depletion
Surge Suppression Provides industrial surge and lightning protection against strikes up to 50 feet away.
Commercial-Duty Cast Aluminum Housing With Heavy-Duty DC Motor Powerful enough to perform in the most demanding applications.
Wireless Dual-Gate Communication Eliminates expensive conduit costs and unsightly driveway scars.
Soft Start/Stop and Mid-Travel Reversal extends operator and hardware life in high-cycle and heavy-gate applications. With optional Expansion board.
Programmable Auxiliary Relays Easily add additional features, such as warning lights/alarms.
Anti-Tailgate Prevents unauthorized access. Gate will pause when closing as vehicle pulls onto interrupt or breaks photo bean. Once vehicle backs up, gate will continue to close.
Quick Close Closes the gate immediately after a vehicle pulls off the interrupt loop.
Specifications
Power Solar Powered system accepts up to 30W 12V panels.
Accessory Power 24VDC 500mA output. Switched and unswitched power.
Monitored Safety Inputs 3 Main Board, 3 Optional Expansion Board.
Temperature Specifications Without Heater: -4°F (-20°C) to 140°F (60°C). With Optional Heater (HTR): -40°F (-40°C) to 140°F (60°C).
Safety and Security
Construction
P3 Motor® 12VDC continuous-duty motor.
Operator Duty Rating See Solar Daily Cycle Rate Chart by Zone.
CHASSIS Constructed with 1/4 in. gold zinc-plated steel for rust prevention.
