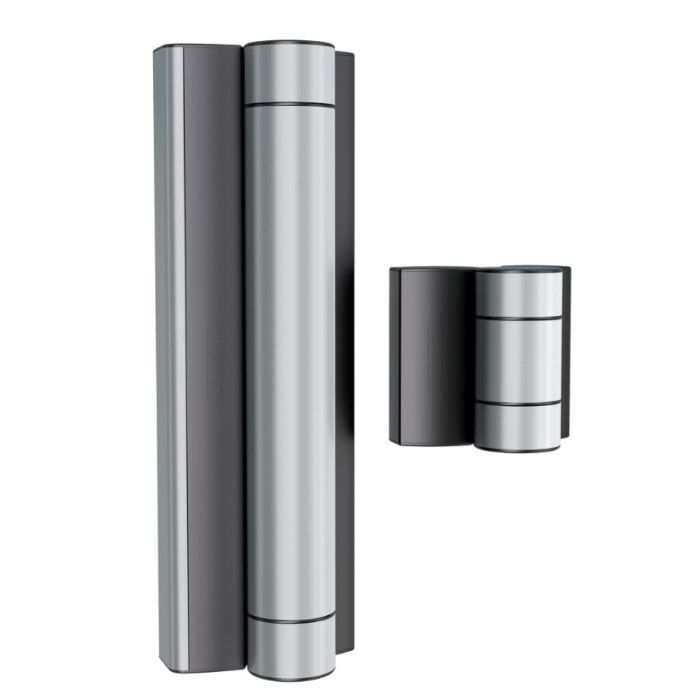

MAGNUS is a motorised hinge and gate closer in one, designed for the automation of pedestrian gates. The brushless and reversible motor is insensitive to unpredictable pedestrian behaviour, and operates in low-energy mode. The settings and access control can be configured via an intuitive app. Includes lower hinge and compact connection box.
Specifications:
Motorized gate closer with integrated electronics
100 Nm torque
Fits on post profiles from 2 3/8" and gate profiles from 1 9/16"
Steel gear box
Anodized aluminium cover
Fast and easy fixation with Quick-Fix bolts
Conforms to UL/cUL 325 standard for automatic operators, tested by ETL
Input main power supply: 110V AC to 240V AC
Motor voltage: 24V DC
External connection box with 3 inputs and 3 outputs (Max. 48W, 24V DC)
Automated obstacle detection with reverse function
Brushless motor: long lifespan and intensive usage
Reversible motor with backdrivability for easy manual use - to be combined with a lock
