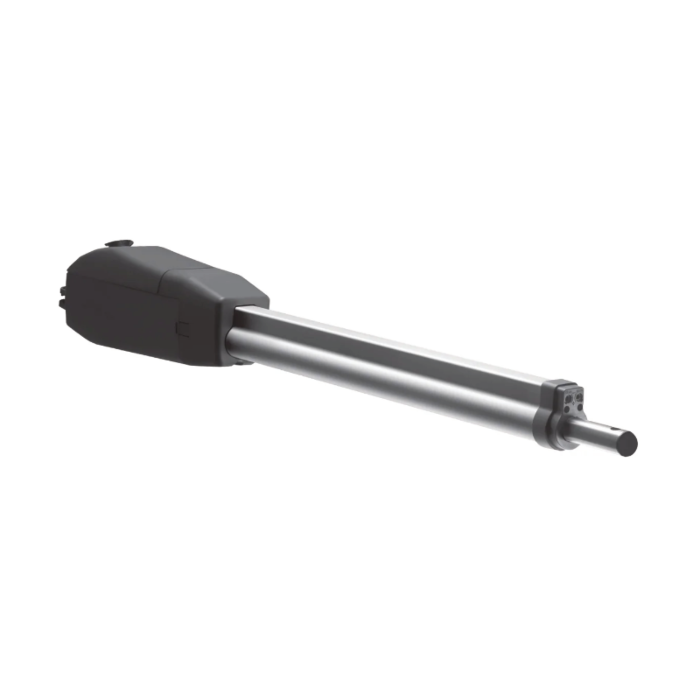

MAXIMUM "SUPER ARM 1300" 24V DC FOR RESIDENTIAL/COMMERCIAL (1300/8')

HEAVY DUTY RESIDENTIAL LINEAR GATE OPERATOR

• Max Gate Weight/Length: 1300 lbs/8 ft, 800 lbs/10 ft, 600 lbs/12 ft

• Shipping weight of Actuator: Super Arm 1300 (25 lbs)

• The patented brake system allows the operator to retract with extreme force. When the force exceeds 2 tons, the clutch releases upon impact, then automatically resets. Causes for clutch release include a vehicle strike while the gate is in motion.

• Stainless steel output shaft – 1 1/4”

• Direct gear drive (no internal chains, belts, or pulleys)

• Mechanical and electrical gate release functions

• Continuous duty cycle at extreme temperature range. No overheating

• Intelligent ramp-up and ramp-down for smooth gate operation
