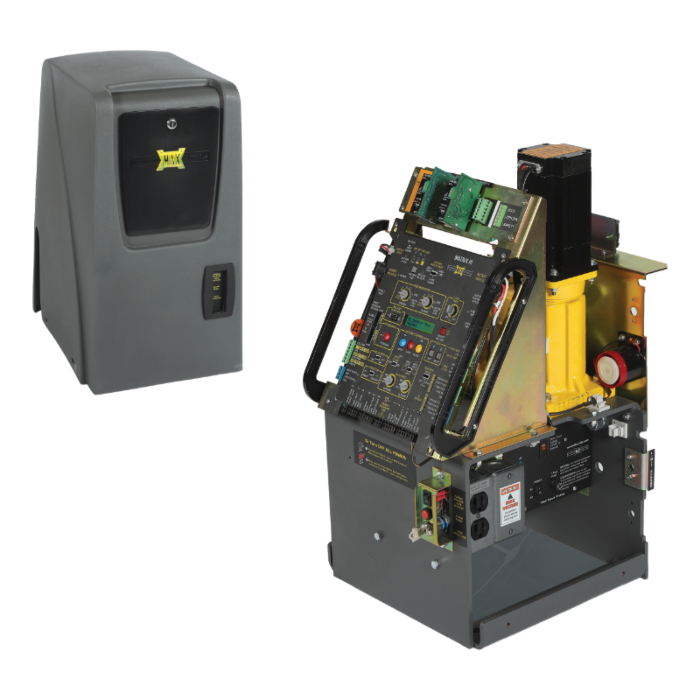

MAXIMUM "1700 FS PRO" COMMERCIAL 24V SLIDE GATE OPERATOR

FAIL SAFE HIGH TRAFFIC COMMERCIAL BRUSHLESS DC SLIDING GATE OPERATOR

• Max 1700 FS PRO Slide Gate Operator dimensions (14.5” W x 19” D x 25.5” H) 7.5” chain height
• Heavy duty direct drive gear box Size 60, 20: 1 gear ratio
• Max 1700 FS PRO capacity 1700lbs /40ft long gate speed 12” per second
• Independent Opening and Closing speed control for primary and secondary
• Direct gear drive (no internal chains, belts, or pulleys)
• Corrosion protection gold zinc coating and electrostatic powder coating applied
• Continuous cycle at extreme temperature ranges—overheating not possible
• Intelligent ramp-up and ramp-down for smooth operation
• Selectable short or long ramp-down
• Shipping weight of Max Slide Gate Operator: Max 1700 FS PRO (156 lbs)
• Programmable virtual OPEN & CLOSE limit (Limits auto-set in the event of a total power loss)
• Local keyed manual disconnect – allows gate to be pushed back.
• Remote keyed manual disconnect – allows gate to be pushed back from outside the property by keypad or any dry contact command.
• Dynamic braking system, in closed position, will fight back if unauthorized push back is attempted.
• Audible alarm and relay out trigger when unauthorized entry (push back) is attempted.
• 25 ft #40 Nickel Plated Chain & Brackets.
