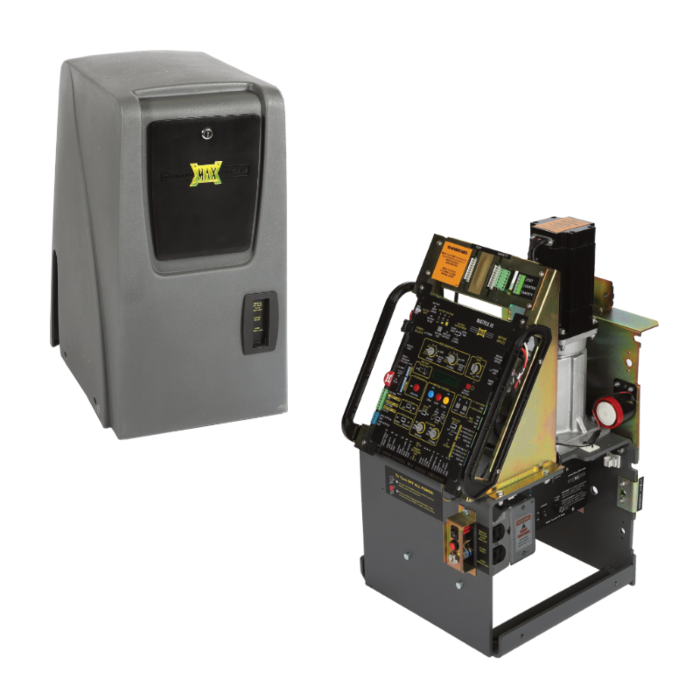

MAXIMUM "2200 PRO" COMMERCIAL 24V SLIDE GATE OPERATOR (2200/50')

HIGH TRAFFIC COMMERCIAL BRUSHLESS DC SLIDING GATE OPERATOR.

Security device that moves 2200 lb. gates.

• Max 2200 PRO slide gate operator dimensions (14.5”W x 19” D x 25.5” H) 7.5” chain height
• Heavy duty direct drive gear box size 60, 30:1 gear ratio
• Max 2200 PRO capacity 2200lbs /60ft long gate speed 12″ per second for class I, II, III and IV
• Independent opening and closing speed control for primary and secondary

• Direct gear drive (no internal chains, belts, or pulleys)
• Corrosion protection gold zinc coating and electrostatic powder coating applied
• Continuous Cycle at extreme temperature range. No overheating possibility
• Intelligent ramp-up and ramp-down gate speed control for smooth operation
• Selectable short or long ramp-down
• Shipping weight of Max Slide Gate Operator: Max 2200 PRO (158 lbs)
• Programmable virtual OPEN & CLOSE limit (Limits auto-set in the event of total power loss)
