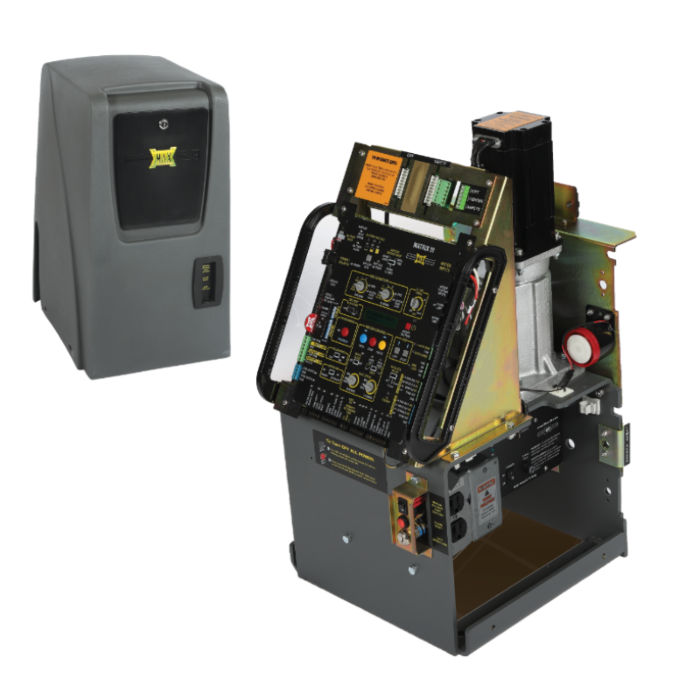

MAXIMUM "F18 PRO" COMMERCIAL 24V SLIDE GATE OPERATOR (1600/30')

FAST HIGH TRAFFIC COMMERCIAL BRUSHLESS DC SLIDING GATE OPERATOR

***The F18 PRO is strictly rated UL Class 3 & 4 and is not for residential use.

• Max F18 PRO slide gate operator dimensions (14.5” W x 19” D x 25.5” H) 7.5” chain height
• Heavy duty direct drive gear box, size 60, 30:1 ratio
• Max F18 PRO capacity 1600 lbs/60ft long gate speed 12″ for UL class III and IV
• Independent opening and closing speed control for primary and secondary
• Direct drive (no internal chains, belts, or pulleys)

• Corrosion protection gold zinc coating and electrostatic powder coating applied
• Continuous cycle at extreme temperature ranges—overheating not possible
• Intelligent ramp-up and ramp-down for smooth operation
• Selectable short or long ramp-down
• Shipping weight of Max Slide Gate Operator: Max F18 PRO (160 lbs)
• Programmable virtual OPEN & CLOSE limit (Limits auto-set in the event of a total power loss)
