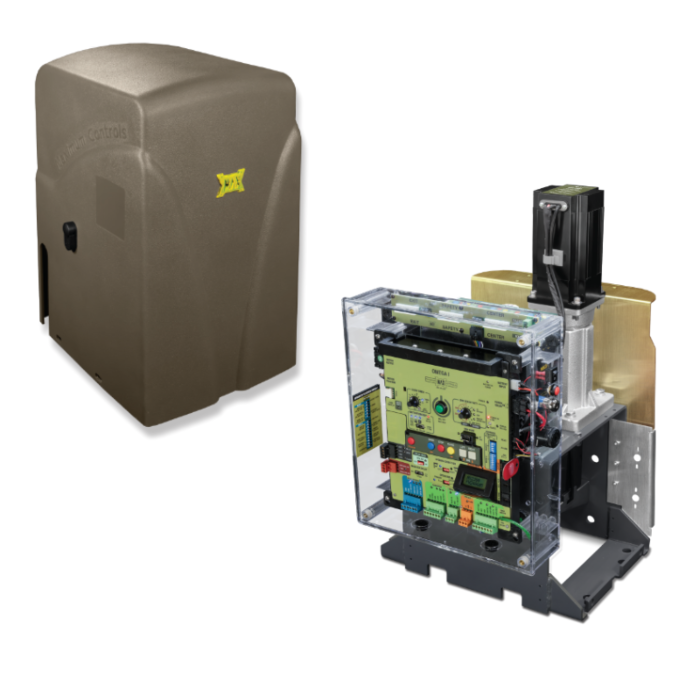

MAXIMUM "MXG 2300" COMMERCIAL 24V SLIDE GATE OPERATOR (2300/60')

The MXG 2300 is a high-traffic, heavy-duty 24V brushless DC slide gate operator.

• Motor Type: 1-1/4 HP 24V Brushless DC - 6 Mil Cycles
• Max Gate Weight: 2300 lbs
• Duty Cycles: Continuous
• Max Gate Length: 60 ft
• Gate Speed: 12" Per Second
• Motor Safety: Motor Overcurrent Safety Shut-Off
• Power Options: Switchable 115/230 VAC
• Battery Back Up: Built-in; Providing a Minimum of 100 Cycles
• Temperature Range: -4ºF to 165ºF (-20ºC to +74ºC)
• Heavy Duty Direct Drive Gearbox: Size 60, 30:1 Gear Ratio - Direct Gear Drive (Cast Iron Housing)
• Dimensions: 15" W x 19" D x 25-3/4" H
• Shipping Weight: 140 lbs
• Emergency Release: Electronic Release - Jog Switch
• Chain Size: #50 Nickel Plated Included
• Breaker: 20 amp
• Power Outputs: Built-in 12VDC and 24VDC
