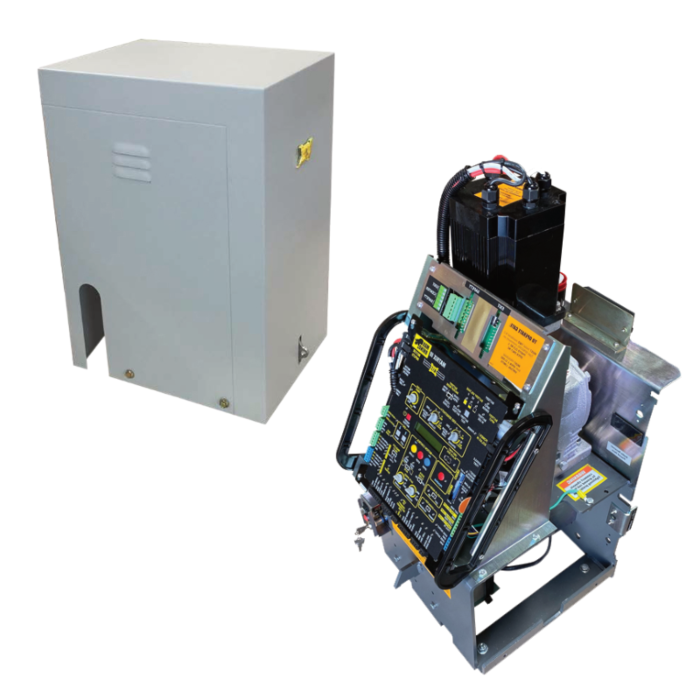

MAXIMUM "RHINO 5500" 24V COMMERCIAL SLIDE GATE OPERATOR (5500/50')

• Built-in battery backup

• 2 AGM (7Amp/Hr) 12V, Yuasa batteries, 40 cycles

• Operator does not rely on the batteries when AC power is present

• On board diagnostic logs 8000 past events, large LCD display

• Shows current and past errors and info

• Dynamic braking system, on incline applications.

• Audible alarm and relay out trigger when unauthorized entry (push back) is attempted

• Brushless DC Motor equivalent to 2 1/2 HP AC motor

• Gate capacity 5500 lbs

• Motor overcurrent safety shutoff for additional protection

• Direct drive gearbox in oil bath allows less moving parts (making the system more reliable) as well as quieter (virtually silent)

• Lightning Protection Advanced lightning strike protection up to 20,000 Volts/10,000 amp

• Continuous duty cycles at extreme temperature range -4˚F to 165˚F (-20o˚C to +74˚C) operational temperature range including battery performance without needing a heater

• Safety monitor device types: Normally closed or 10K types (most safety inputs in the industry)

• UL 325/991 compliant Class III, and IV. CSA approved

• Rhino Slide Gate Operator dimensions (14.5” W x 19 .625” D x 29” H) weight 225 lbs

• Independent open and closing speed control, adjustable from 8” per second to 12” per second

• Programmable virtual limit standard

• Gate status outputs for gate monitoring/Gate Open or Close

• Power options Input 115V/230V AC single phase

• Solar panel compatible (24V DC)
