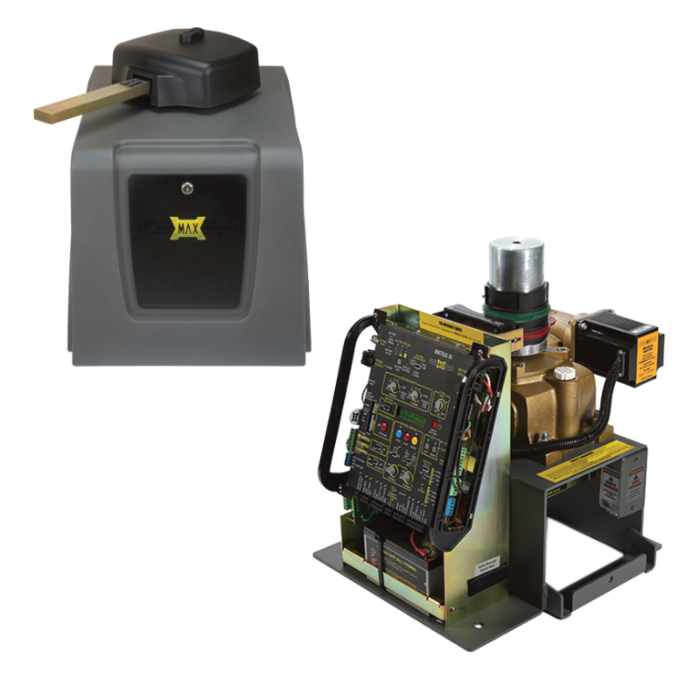

MAXIMUM "1400 PRO" COMMERCIAL 24V SWING GATE OPERATOR (1400/15')

HIGH TRAFFIC HEAVY DUTY COMMERCIAL BRUSHLESS DC SWING GATE OPERATOR

True Security… DSP Motion Control…High Performance…

• Max Megatron 1400 PRO dimensions (18.3 W x 24.5 D x 21.3 H) 18.5 arm height
• Heavy duty gear box 900:1 Size 70 for Megatron 1400 PRO
• Megatron 1400 PRO capacity 1400lbs/15ft or 1200lb/20ft – gate speed 11 1⁄2 to 18 seconds
• Large output shaft 3 1/4” diameter solid steel with cast iron clamping system for all Megatron

• Direct gear drive (no chains, belts, or pulleys)
• Mechanical and electrical manual gate release functions
• Corrosion protection gold zinc coating
• Continuous cycle at extreme temperature range. No overheating possibility
• Intelligent ramp-up and ramp-down gate speed control for smooth operation
• Shipping weight of Max Megatron 1400 PRO (205 lbs)
