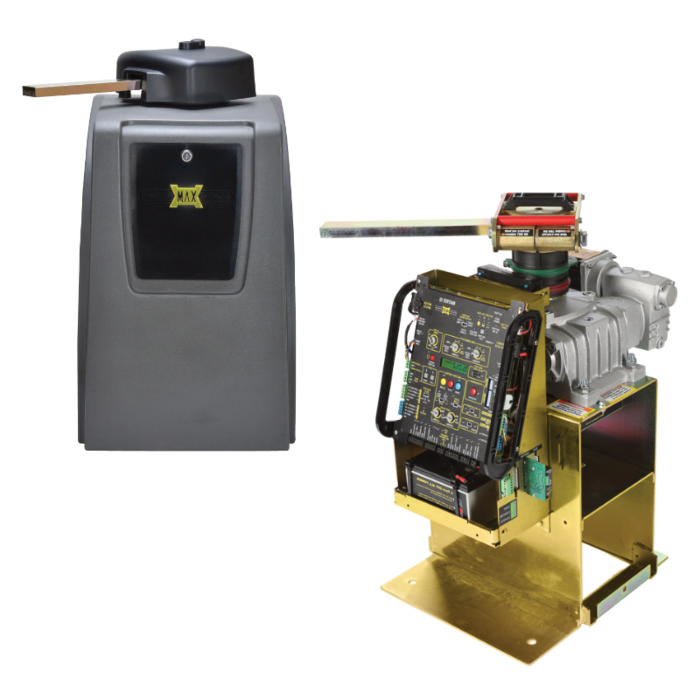

MAXIMUM "HIGH PROFILE" 2200 HP PRO COMMERCIAL 24V SWING GATE OPERATOR (2200/15')

MAX MEGATRON 2200 HP PRO

• Max Megatron 2200 HP PRO dimensions (16.81” W x 24.5” D x 29.92” H) 26.61” arm height
• Heavy duty gear box 900:1 Size 80 for Megatron 2200 HP PRO
• Megatron 2200 HP PRO capacity 2200lbs/15ft or 1800lb/20ft – gate speed 11 1⁄2 to 18 seconds
• Large output shaft 3 1/4” diameter solid steel with cast iron clamping system for all Megatron

• Direct gear drive (no chains, belts, or pulleys)
• Mechanical and electrical manual gate release functions
• Corrosion protection gold zinc coating
• Continuous cycle at extreme temperature range. No overheating possibility
• Intelligent ramp-up and ramp-down gate speed control for smooth operation
• Shipping weight of Max Megatron 2200 HP PRO (250 lbs)
