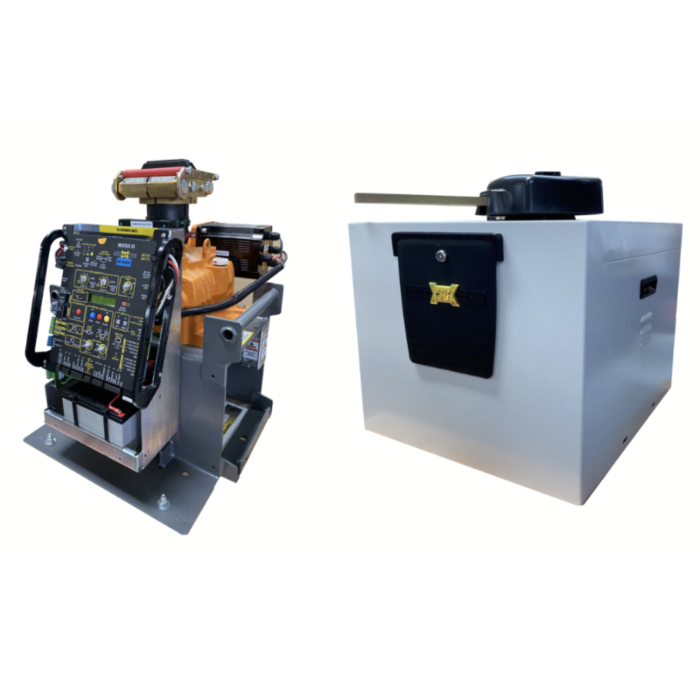

MAXIMUM "MEGATRON TANK" HIGH TRAFFIC COMMERCIAL 24V SWING GATE OPERATOR (4500/10')

SUPER HEAVY DUTY 4500 LBS CAPACITY

High-traffic Commercial Brusless DC Swing Gate Operator The Maximum Level of Gate Control

• Max Megatron Tank dimensions (19.25 W x 23 D x 25 H) 22.5 arm height
• Heavy duty dual gear box 900:1 Size 100 for Megatron Tank – 120 lbs.
• Megatron Tank capacity 4500lbs /10ft or 3000lbs/30ft
• Large output shaft: 31⁄4” diameter solid steel with cast iron clamping system for all Megatron
• Direct gear drive (no chains, belts, or pulleys)
• Mechanical and electrical manual gate release functions
• Corrosion protection gold zinc coating and powder coating
• Continuous cycle at extreme temperature range; no overheating possibilities
• Intelligent ramp-up and ramp-down gate speed control for smooth operation
• Shipping weight of Max Megatron Tank (323 lbs)
