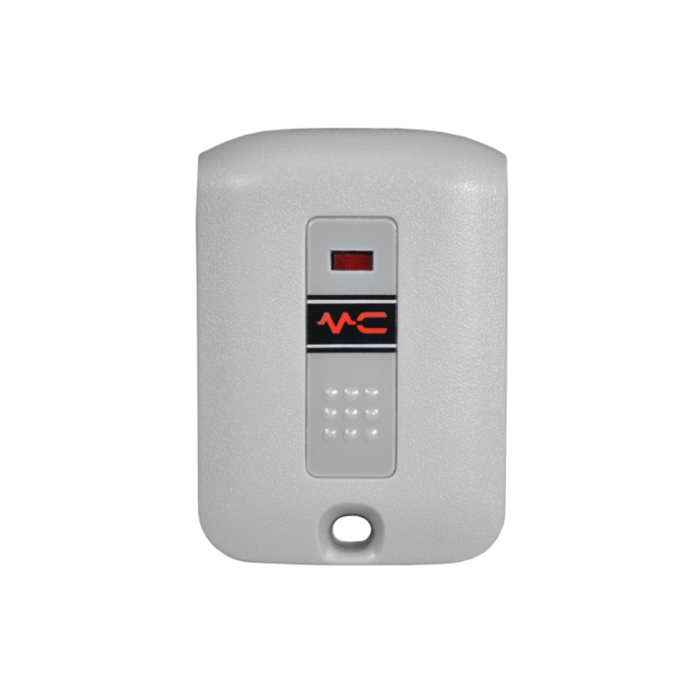

MICRO SINGLE BUTTON TRANSMITTER (MULTI CODE 3070-10)

The Model 307010 1-Channel Key Ring Transmitter is a miniature style transmitter designed for automatic door and gate operator applications. This transmitter is a single-channel device, pressing the pushbutton will send a signal to the receiver. A molded-in hole in the case is for attaching the transmitter to a key ring. The transmitter is Multi-Code format with one 10-position coding switch providing 1,024 possible codes. It will only activate receivers set with the same code.

Features

• Compatible with 300 MHz Multi-Code receivers
• Easy access to battery and coding switches
• Power: 12-volt battery
• Codes: 1,024 (set by dip switches)
• RF frequency: 300 MHz
• Dimensions: 1.5″ W x 2″ H x 0.625″ D
