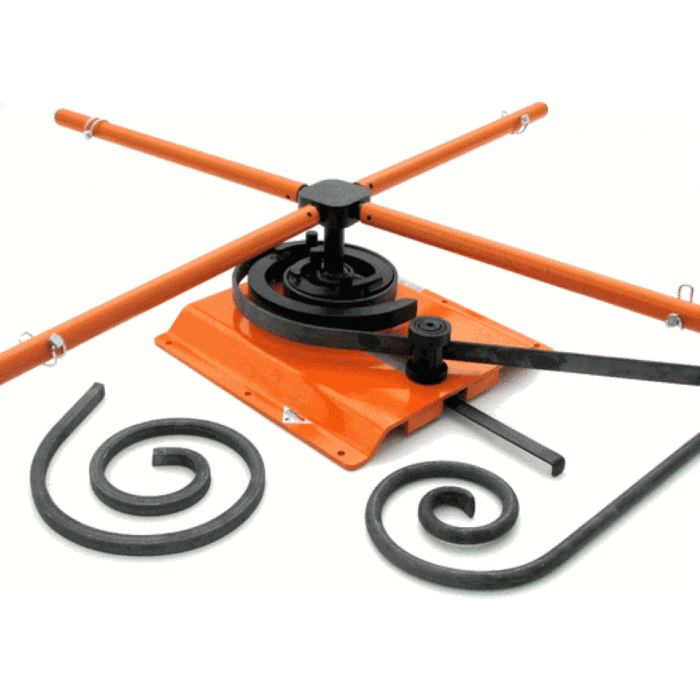

MK 3/4 HEAVY DUTY SCROLL BENDER KIT

The interchangeable segments enable the MK 3/4 heavy duty scroll bender to create various scroll shapes and sizes. The MK 3/4 also comes with a “rapid locking system” for holding, releasing bar ends, easy scroll release and handle extensions for more leverage on thicker material. The MK 3/4 can also work material with fish tail ends.

SPECIFICATIONS: MAXIMUM WORKING CAPACTIY:

2" WIDE X 1/4" THICKNESS OR 1" WIDE X 3/8" THICKNESS FLAT STRIP METAL

1/2" (UNHEATED) OR 5/8" (WITH END HEATED) (SOLID ROUND ROD)

1/2" (UNHEATED) OR 5/8" (WITH END HEATED) (SOLID SQUARE BAR)

MAX. SCROLL SIZE:

10" (APPROXIMATE DUE TO THE VARYING TEMPER (SPRING) OF STEEL)

MIN. SCROLL SIZE:

FOR 2" WIDE X 1/4" THICKNESS FLAT STRIP METAL (USING #1 SCROLL SEGMENT ONLY) IS APPROX. 2 3/8"

FOR 1" WIDE X 3/8" THICKNESS FLAT STRIP METAL (USING  #1 SCROLL SEGMENT ONLY) IS APPROX. 3 1/8" FOR 1/2" OR 5/8" SOLID SQUARE BAR OR SOLID ROUND ROD (#1 AND #2 SCROLL SEGMENTS MUST BE USED TOGETHER FOR THESE SIZES) IS APPROX. 4 3/4"

TOOL DIMENSIONS:

14 1/4" (WIDTH) X 14 1/4" (DEPTH) X 7" (HEIGHT)

18" EACH HANDLE LENGTH OR

34" EACH HANDLE LENGTH WITH EXTENSIONS ON
