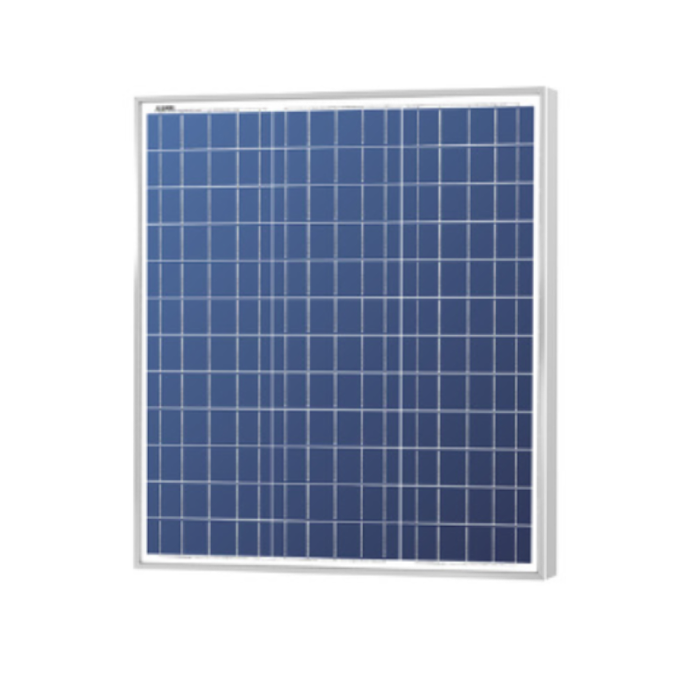

ST-90Q-24 utilizes high efficient monocrystalline solar cells and the latest solar module production technology. It is widely used in various 24V off-grid applications such as traffic and safety, telecommunications, lighting, recreational vehicles, marine., etc. Its sturdy aluminum frame, thick back plate, and specialized junction box ensure that the module can withstand various weather conditions and provide its expected energy output. Key Features: Monocrystalline cell efficiency: 21.4%, Up to 90 watts of power output, 24 volts DC output, Durable and reliable construction, Ability to withstand harsh environmental conditions, Lightweight and easy to install.
Electrical Characteristics
Module Type: ST-90Q-24
Maximum power (Pmax): 90W
Voltage at Pmax (Vmp): 38.03V
Current at Pmax (Imp): 2.37A
Open-circuit voltage (Voc): 44.63V
Short-circuit current (Isc): 2.53A
Module Efficiency: 21.4%
*STC: Irradiance 1000W/m2 , AM1.5 spectrum, module temperature 25°C
Rating Characteristics
Operating temperature: -40°C to 65°C
Maximum system voltage: 1000V DC
Power tolerance: ± 3%
*NOCT: Nominal operating cell temperature (the data is only for reference)
Temperature Characteristics
Temperature coefficient of Voc: -(80±10)mV/°C
Temperature coefficient of Isc: (0.065±0.015)%/°C
Temperature coefficient of power: -(0.5±0.05)%/°C
NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s): 47±2°C
Specifications
Cells: Monocrystalline silicon solar cell
No. of cell and connections: 66 (3X22)
Module dimension: 33.86in. x 22.83in. x 1.18in. [860mm x 580mm x 30mm]
Weight: 12.76lbs [5.79kg]
Specifications
Specifications
Can ship via UPS
Yes
