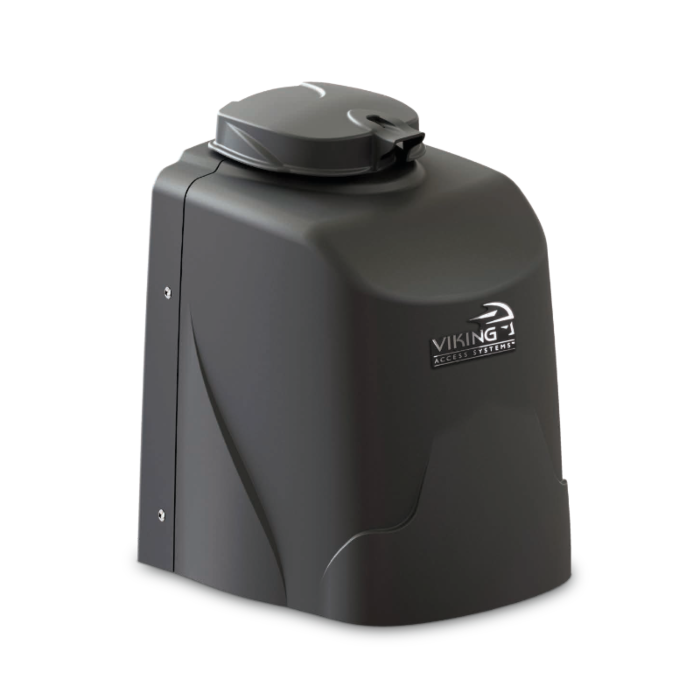

VIKING T-21NX ""INDUSTRIAL GRADE"" SWING GATE OPERATOR (12'/2000 - 20'/1200 LBS)

Operational Specifications

Operation: 24 VDC With 1 H.P. Motor
Main Power Source: 120/220 VAC Single Phase
Battery: 7 AMP Hour 12 VDC x 2
Capacity: 1200 lbs. / 20’ - 2000 lbs. / 12’
Max. Opening Speed: 13-16 Seconds per 90°
Battery Back-up: 400 Full Cycles (2000 lbs. / 12’ Gate)
Max Duty Cycle: 100% (Continuous Cycles)
Temperature: -4° F to + 158° F
UL 325 and 991 Listing
Fail-safe / Fail-secure Clutch Mechanism
Loop Rack Included
On-Board Lightning Protection
Soft-start / Soft-stop W / Intelligent Obstruction Detection
Solar Panel Ready: Requires 24VDC 80 watts
Limited Factory Warranty: 7 Year Residential and 5 Year Commercial
