EMX "NIR-50-325" UL325 STANDARD DUTY RETROREFLECTIVE PHOTOCELL KIT
EMX "NIR-50-325" UL325 STANDARD DUTY RETROREFLECTIVE PHOTOCELL KIT
Product Description
More Information Features

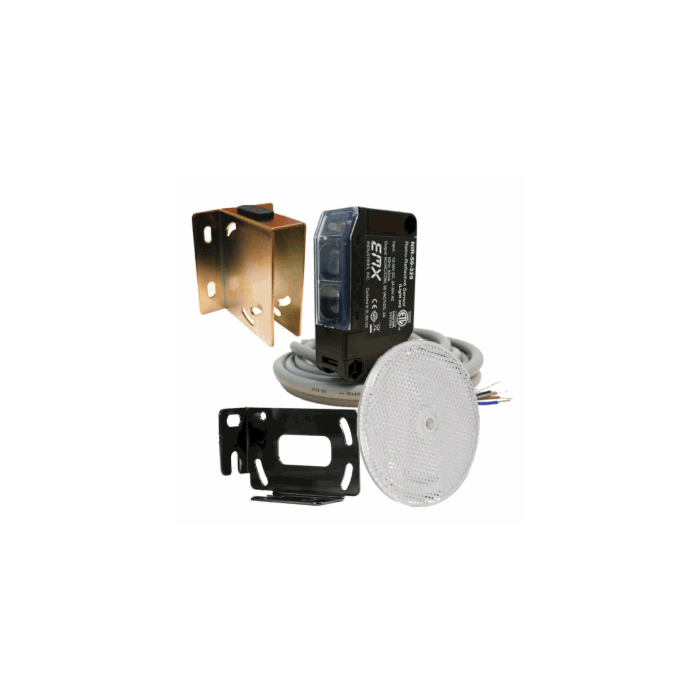

- Kit includes photoeye with hood, reflector with hood, and mounting bracket with hardware
- UL325-2018 complaint
- Retroreflective configuration
- NC and 10K monitoring
- Sensitivity adjustment
- Wide range operating voltage
- Watertight package for reliable outdoor installation
- Lead wire: 6 feet
Specifications
Operating range: 0.5ft (0.1m) …50ft (15.2m)
Sensitivity adjustment: Potentiometer
Signal stability indicator: Yellow LED
Alignment indicator: Red LED
Relay output: Form C contacts (NO, COM, NC), 30VAC/VDC, 2A
Resistive termination: 10k Ohm (internal)
Response time: 10ms
Power: 12…30VDC, 24…30VAC @ 60 Hz
Current draw: 83mA
Operating temperature: -4°…131°F (-20°…55°C)
Environmental protection: IP 66 IEC
Connections: 5 wires, 6.5’ (2m) cable |
Specifications
Specifications | Can ship via UPS | Yes |
|---|
| Manufacturer | EMX Industries |
|---|
| Package/Shipping Weight | 1.25 |
|---|
