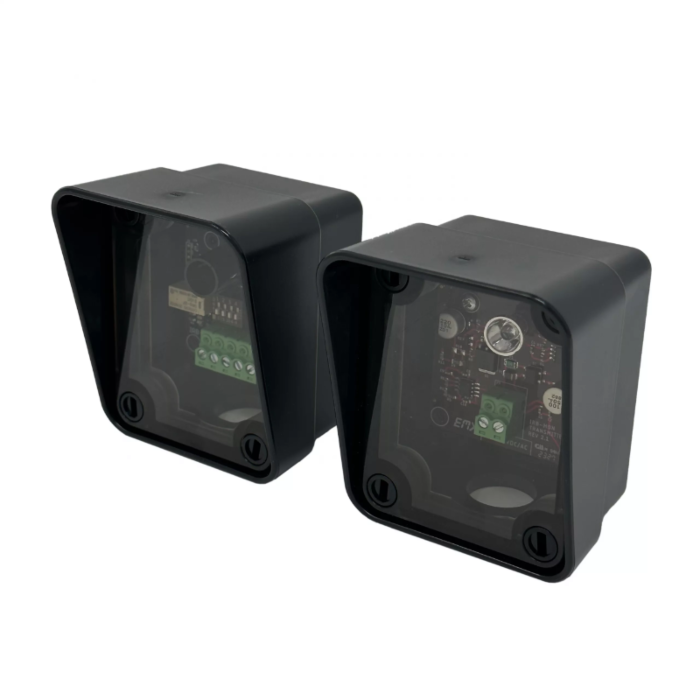

The IRB-MON2 is a monitored, weather-proof, thru beam infrared photoeye solution providing entrapment protection for doors, gates and barriers. It is UL325 compliant and housed in an IP65 rated enclosure suitable for indoor and outdoor use.
This universal UL325 thru beam photoeye can be used with a wide variety of monitored operators. Additionally, it is compatible with most non-monitored legacy products. Its robust construction minimizes fogging and false triggering to provide easy alignment.
Features
Kit includes transmitter, receiver, integrated protective hoods and removable lens sunshield
Thru beam configuration
UL325 compliant
Four (4) monitoring interfaces
115 ft. operating range
Easy installation and set-up
Compatible with many operators
Specifications
Operating Range: 5 to 115 ft (35 m)
Power: 6-35 VDC, 12-24 VAC
Connections: “Removable” screw terminal for easy wiring
Operating Temperature: -40° to 170°F (-40° to 77°C)
Dimensions (L x W x H): 3.6” (91 mm) x 2.9” (74 mm) x 2.9” (74 mm)
Conduit Hole Size (bottom of the housing): 0.83″ (21.3 mm) – large enough for 1/2 Inch NPT
