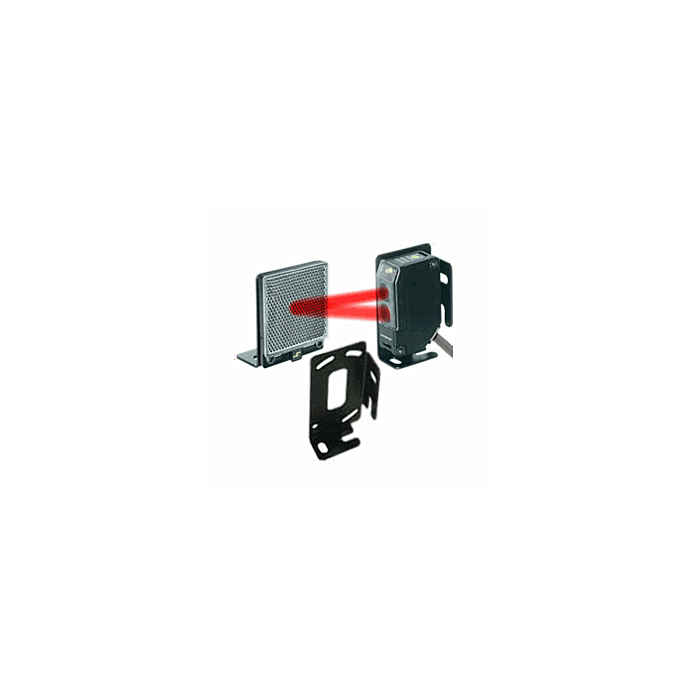

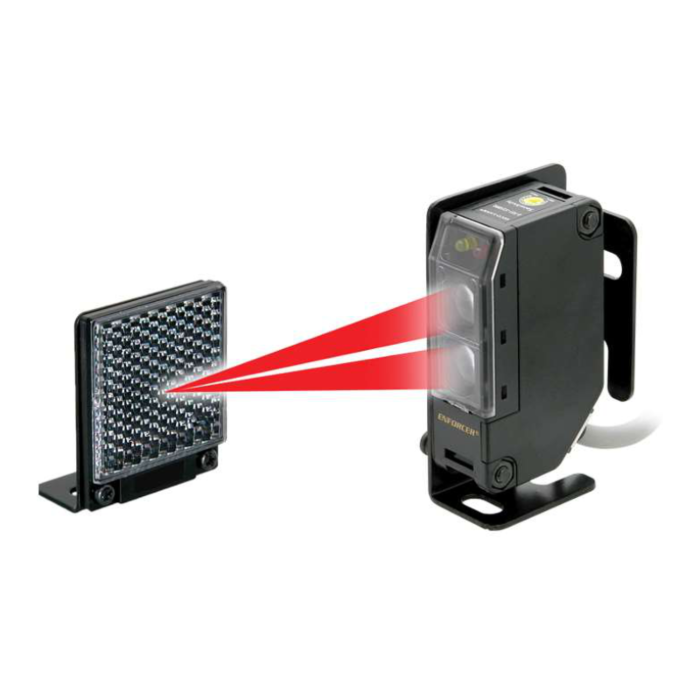

ENFORCER 35 FT "REFLECTIVE-BEAM SENSOR" (PHOTOCELL)

The ENFORCER E-931-S35RRQ Retro-Reflective Photoelectric Beam Sensor provides reliable sensing of objects that enter the space between the sensor and reflector, thus breaking the infrared beam. It is suitable for various types of such as detection such as sensing approaching vehicles to open a garage door or outdoor gate, as an entry notification for stores, for measuring parking distances, industrial automation, or an alarm notification, as well as many other uses.

• For outdoors gates, garage doors, etc.
• Adjustable sensing range
• 12~240 VDC / 24~240 VAC Operation
• Current draw: Up to 40mA@12VDC
• For indoor or outdoor use (IP66 Weatherproof)
• Pre-wired 6.5ft (2m) cord
• Brackets and mounting hardware included
• Compact size

Typical Applications

• Sensor for garage doors, outdoor gates or overhead doors
• Sensor for industrial automation to detect objects on the manufacturing line

Specifications:

Type: NIR Reflective Photoelectric Sensor

Current Draw: Standby- 12VDC@20mA; 24VDC@10mA, Active- 12VDC@40mA; 24VDC@20mA

Sensing Range: 0.5′ to 35′ (0.1 – 11m)

Operating Voltage: 12~240 VDC / 24~240 VAC

Reaction time: 10ms (max.)

Light Source: IR LED

LEDs – Red: Active

LEDs – Yellow: Standby

Output: SPDT Relay Output

Switching Capacity: 250VAC/1A, 30VDC/2A

Operating Temperature: -4º~131º F (-20º~55º C)

Enclosure: IP66 Waterproof

Trigger Output: SPDT Relay output (NO/NC/COM)
